The MCS BETA 8 system is based upon a 19 inch rack with power supply and a backbone bus for Eurocards with the MCS bus.
With these cards a full blown 6502 system can be build with lots of RAM or ROM, I/O, floppy disk interfaces, A/D and D/A cards and more.
A Operating system, FDOS, with MCS-BASIC and MCS assembler was available.
Besides photos and documentation of many cards and dumps of system ROMS nothing has survived, no floppy disk images.
MONA system ROMS listings, dumps, recreated sources.
Three versions of MONA are known:
MONA A 1.10.77 ROM
The source of MONA A 1.10.79 is listed in the Handbuch (manual). I have recreated the source in MOS Technology assembler syntax standard. It delivers a 2K ROM image.
I also dumped the ROM of my MCS Alpha 1 (in a TMS2716 2K EPROM) and checked for changes. The routine at label STP (initialization code) is slightly different.
So also the source of this dumped version is recreated. You find all sources (from listing and dumped ROM) and binaries and changes in the archive downloadable below.
![]() |
MCS MONA A 1.10.79 Listing and source Original scanned listing and recreated source and binary in MOS syntax Recreated form listing in the manual and the actual dumped ROM |
MONA 2
This version of MONA is suited for the MCS Alpha 1 CPU card. Of this version bot a hex dump and a listing is available.
Biggest addition is the autobaud detection for the serial I/O. Version is MONA 2, 26.9.1979
And the change around label STP as found in the dump of MONA 1.
![]() |
MCS MONA 2 26.9.79 Automatic baud-rate detection for Alpha 1, and the ROM the disk ROMs of BETA 8 were made for. Two versions of the source: one derived from MONA A/1 listing and hex dump, and one from the MONA2 listing Recreated source and binary in MOS Assembler syntax. Original hex ROM dump included. Original MONA2 listing and manual included |
![]() |
MONA 2 listing and user manual |
MONA 4
The source of MONA 4 is found in the M660 SBC 6502 card description. And a hex dump of the ROM is available.
The recreated source from the listing delivers an exact equal binary to the source of the ROM dump.
Two sources are recreated: a source as found in the listing and a source derived from the MONA 1 listing.
Version 4, 6.11.1799
Teletype-only version, with the main port moved to $F600 and a serial port on $F500.
What changed
The 6532 now sits at $F600 instead of $F680. Only the equates changed: PA, PADD, PB, PBDD, T_1, T_64, T_1024, VORBEI and TREAD are each $80 lower.
There’s a new serial port at $F500–$F502. It has no name in the listing, so I added three equates: SERIN ($F500, bit 7 is the input), SERFLG ($F501, tested at reset) and SEROUT ($F502, the output).
The key-and-display cycle is bypassed. STP and DTCYC now jump straight to TTY.
The PA6 switch tests in TTY0 and TTY2 are replaced by NOPs.
RESTRT now tests SERFLG (BMI) instead of PB (BVC).
Serial routines rewritten: ASCIIN and TTYOUT now bit-bang on the new port, and ASCIIN preserves X. BAUD reads SERIN, and its PA6 escape is replaced by NOPs.
Small fixes:
In LADEN, a record with 0 bytes now goes back to LADEN instead of LADEN3.
In MNEMON, the PA6 test is replaced by CLC/NOP/NOP/BCC.
![]() |
MONA 2 source and binary |
![]() |
MONA 4 listing from the M660 CPU manual |
Disk ROM and Disk and Printer Utilities ROM
I also found a hex dumps of the DRDISV4 and LOADER41 ROMs, both 2K ROM images.
The LOADER41 ROM gives driver access to the disk functions of the MCS floppy drive M677 FloppyController. The MCS operating systeme FDOS calls these fucntion to read and write to a floppy disk.
DRDISV4 has additional disk access functions and Printer driver. It is a 2K utility ROM at $E800–$EFFF that adds parallel printer support and disk utilities Format and Copy on top of MONA and loader41
![]() |
LOADER41 source and binary |
![]() |
FDOS driver LOAD41 description |
![]() |
|
| Description of the DRDISV4 ROM |
Remarks about the ROMS, how they work together
Disassembling and reading the sources gave me some clues how all this works together.
| MCS Software remarks |
Description of the disk operating system FDOS and MCS-BASIC V2.0
MCS offered a Disk Opera ting system on top of MONA and the LOADER41 and DRDOISV4 ROM, called FDOS.
A Basic was also available called MCS Basic.
All I have are the manuals.
![]() |
MCS FDOS V2.0 manual |
![]() |
MCS BASIC V2.0 manual |
Description in detail of many BETA 8 cards
Available in the document downloadable below is detailed information about the cards:
M622 Schalter
M628 IO-Karte
M-628 sockel_SB
M639 Floppyinterface 10Mai1978
M660 SBC6502 un Anschluss
M677 FloppyController 7Jun1978
M687 AD-Wandler
M688 DA-Wandler
M705 32k_DRAM
M764 IO-Karte-6522 Jan1981
![]() |
MCS BETA 8 cards documentation |

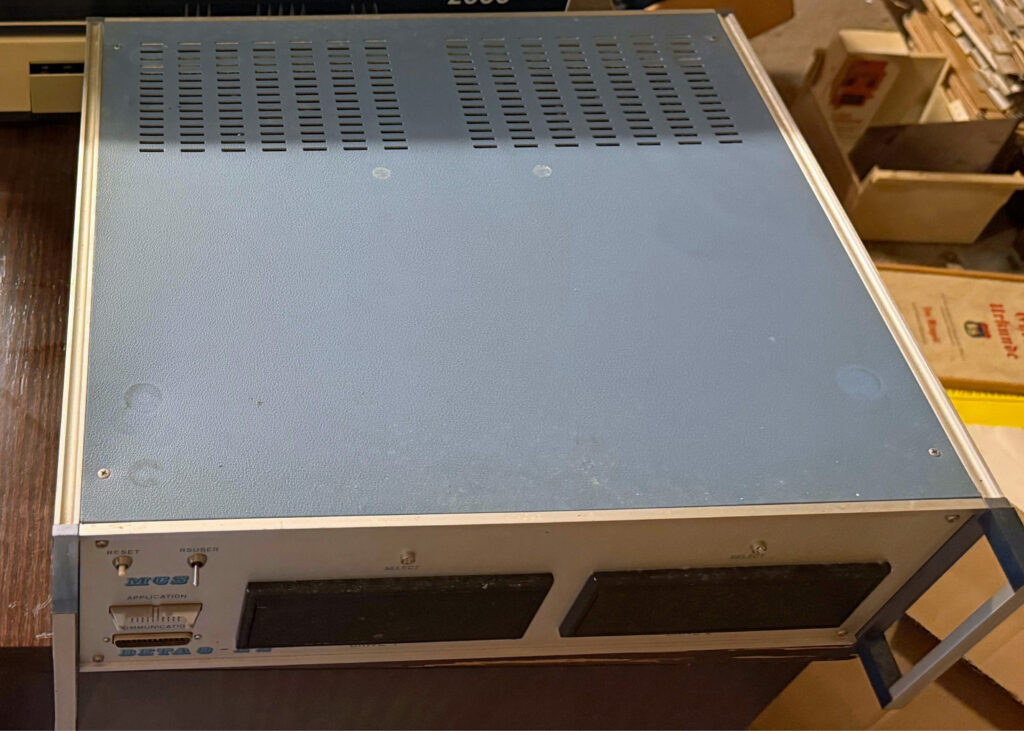

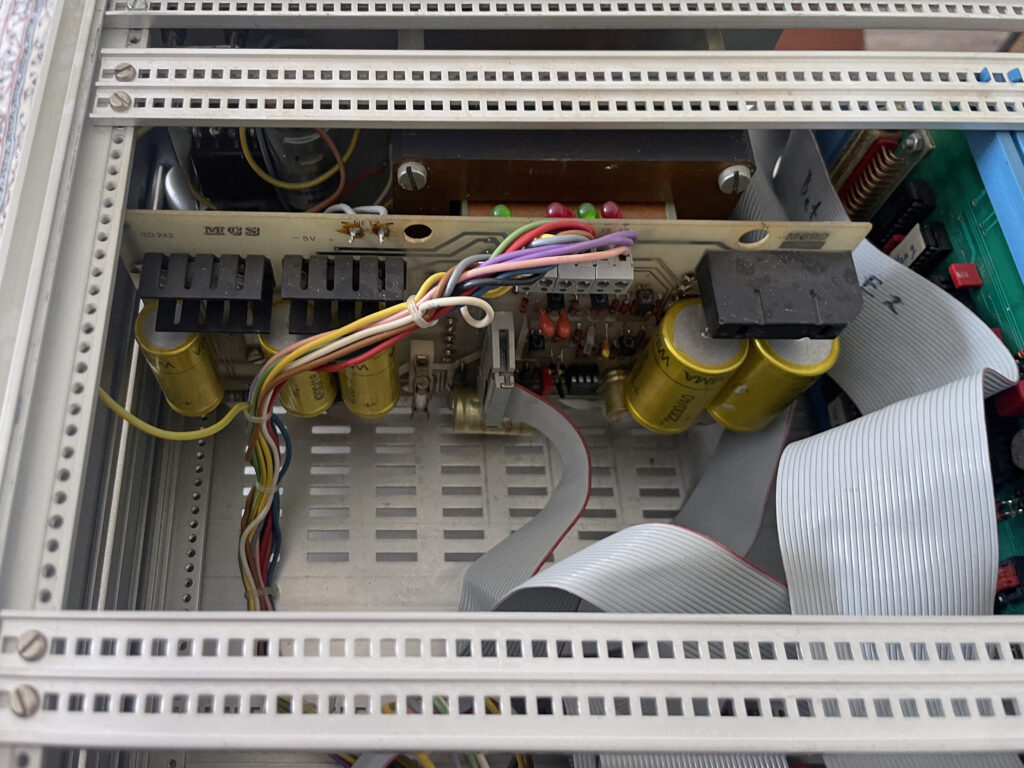

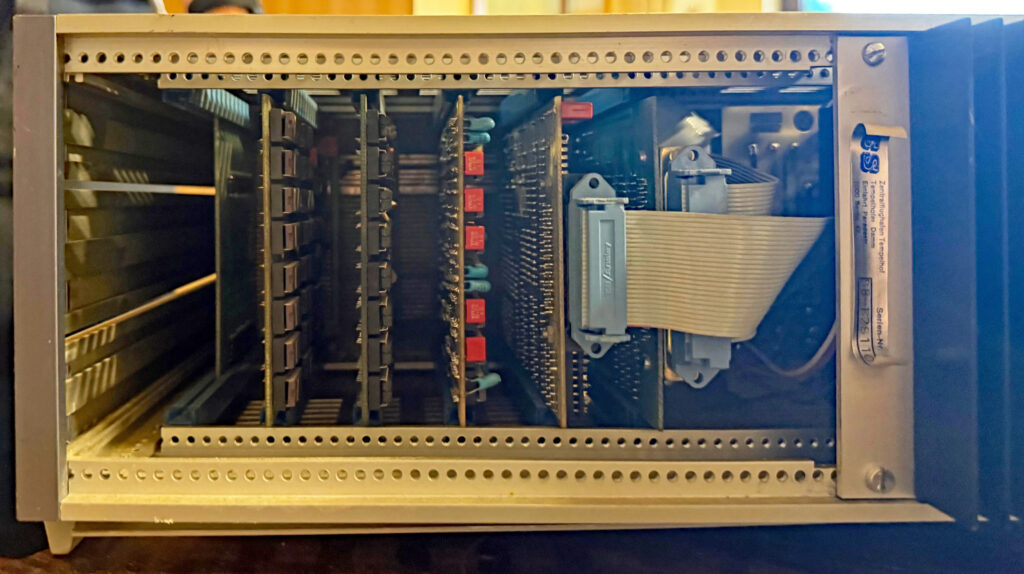

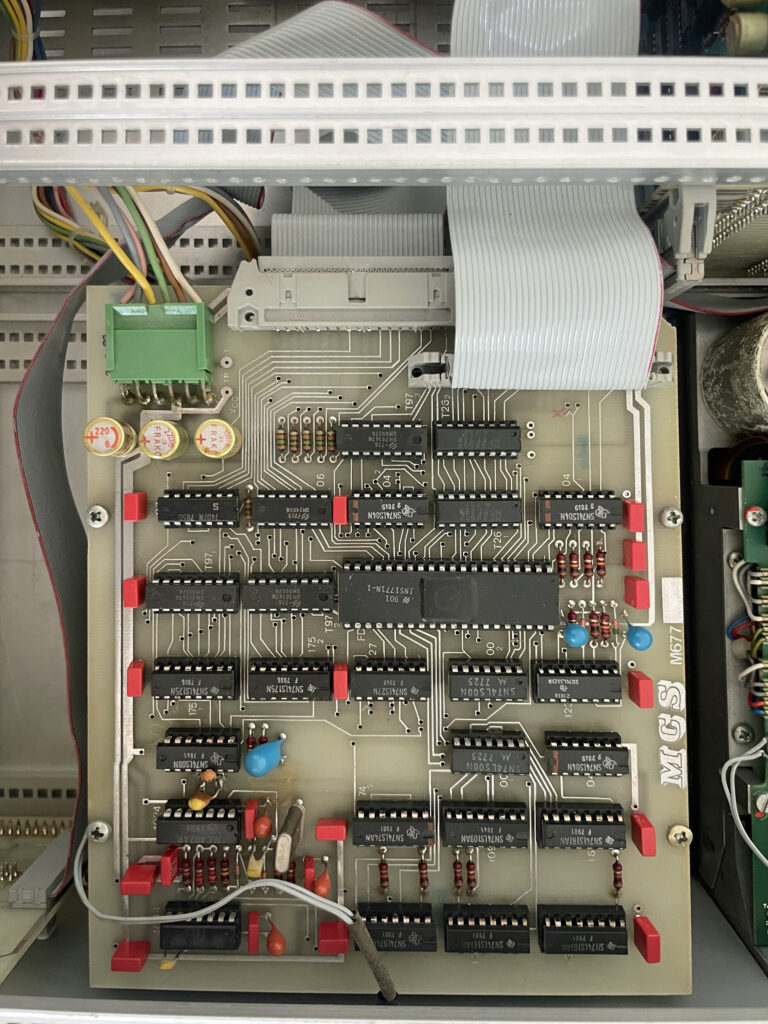

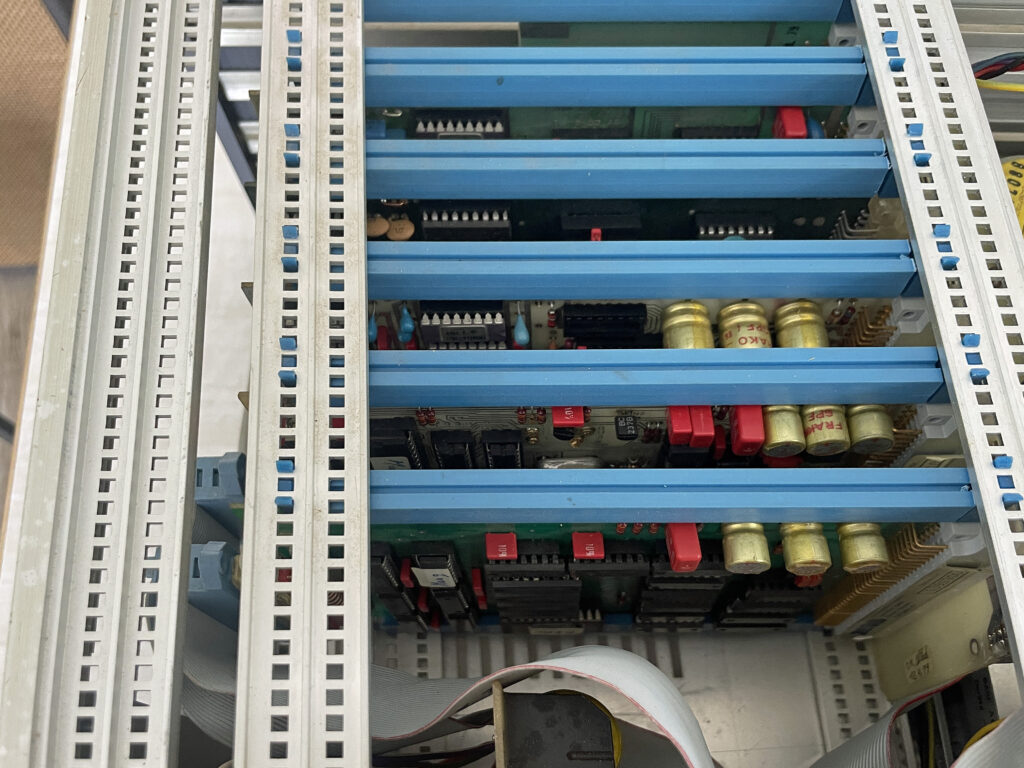

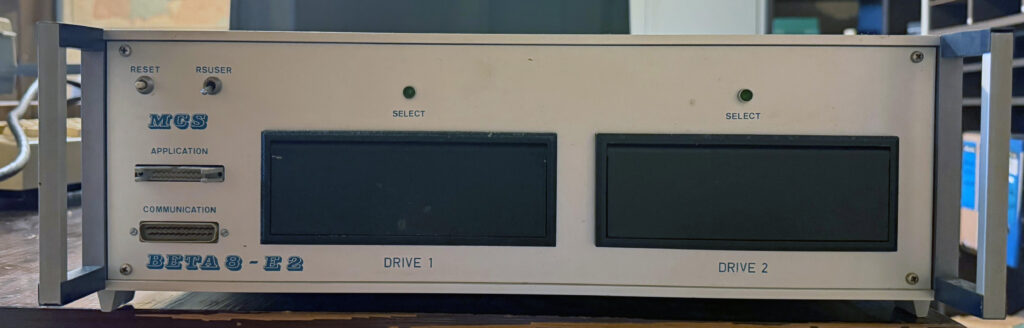

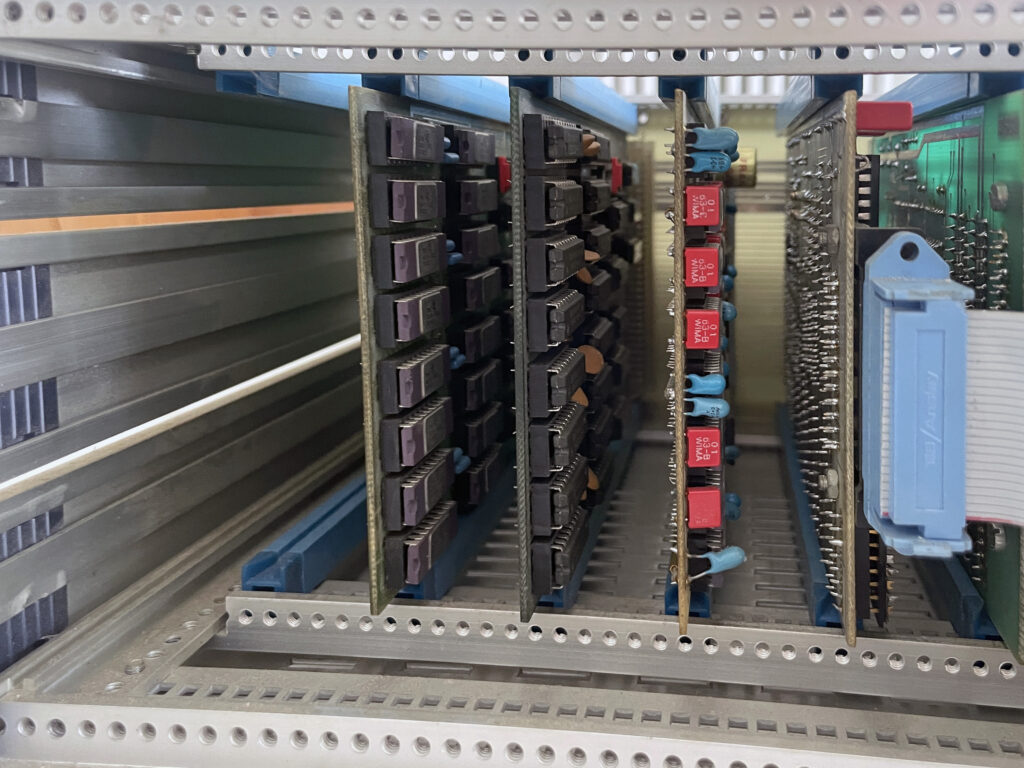

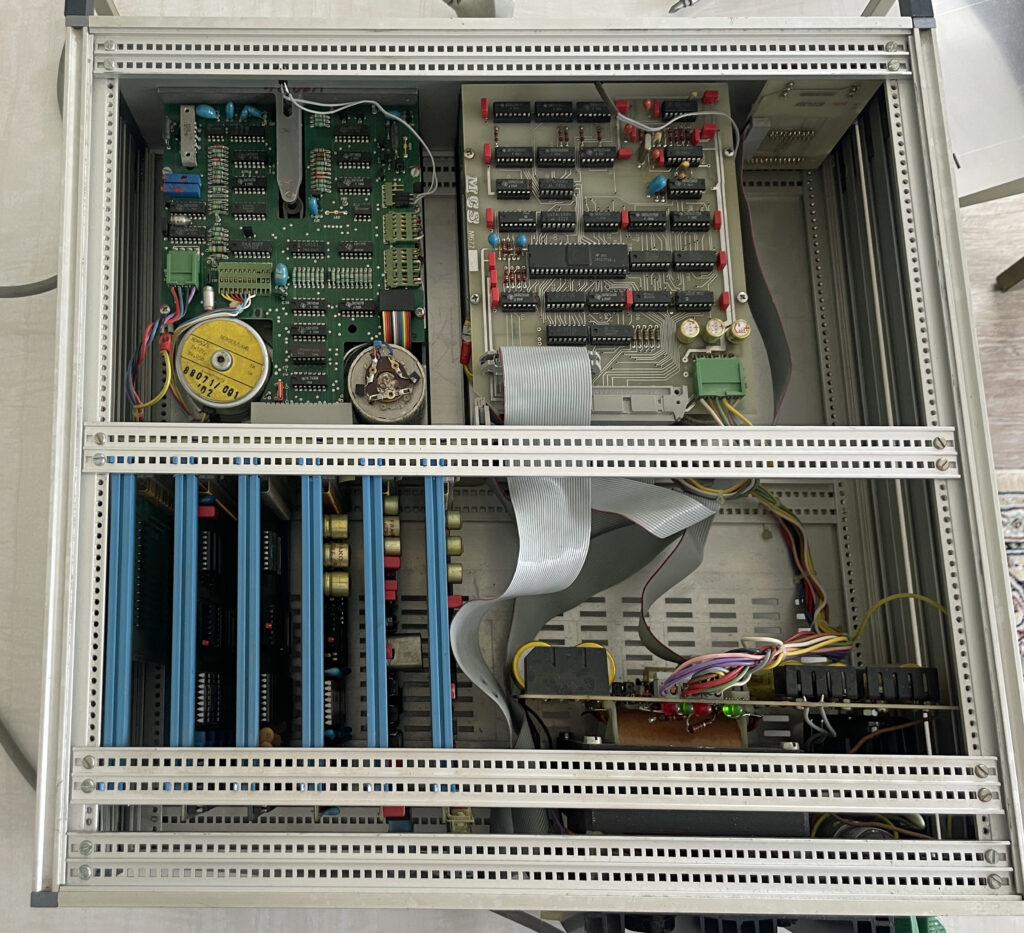

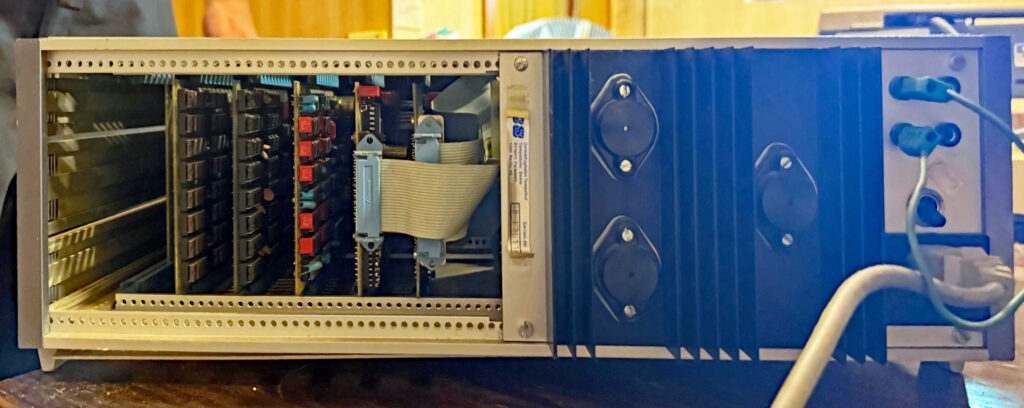

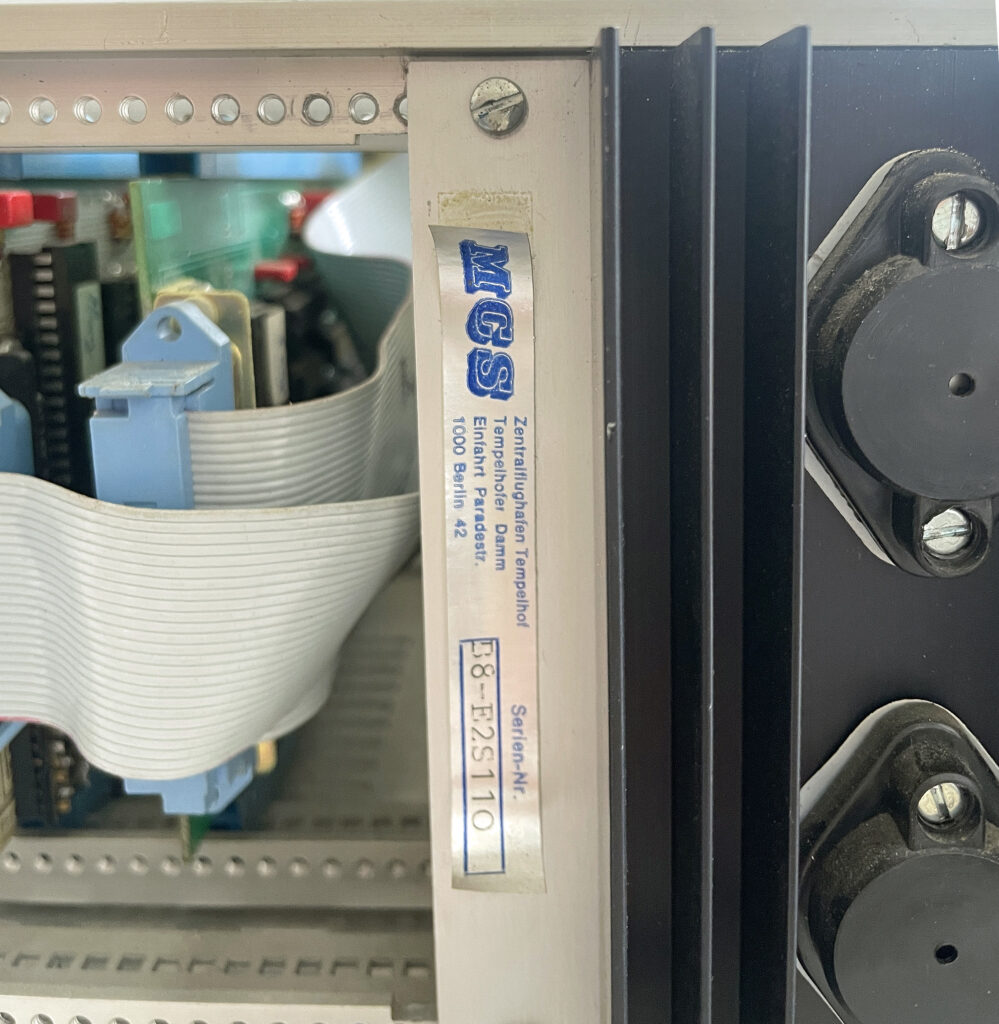

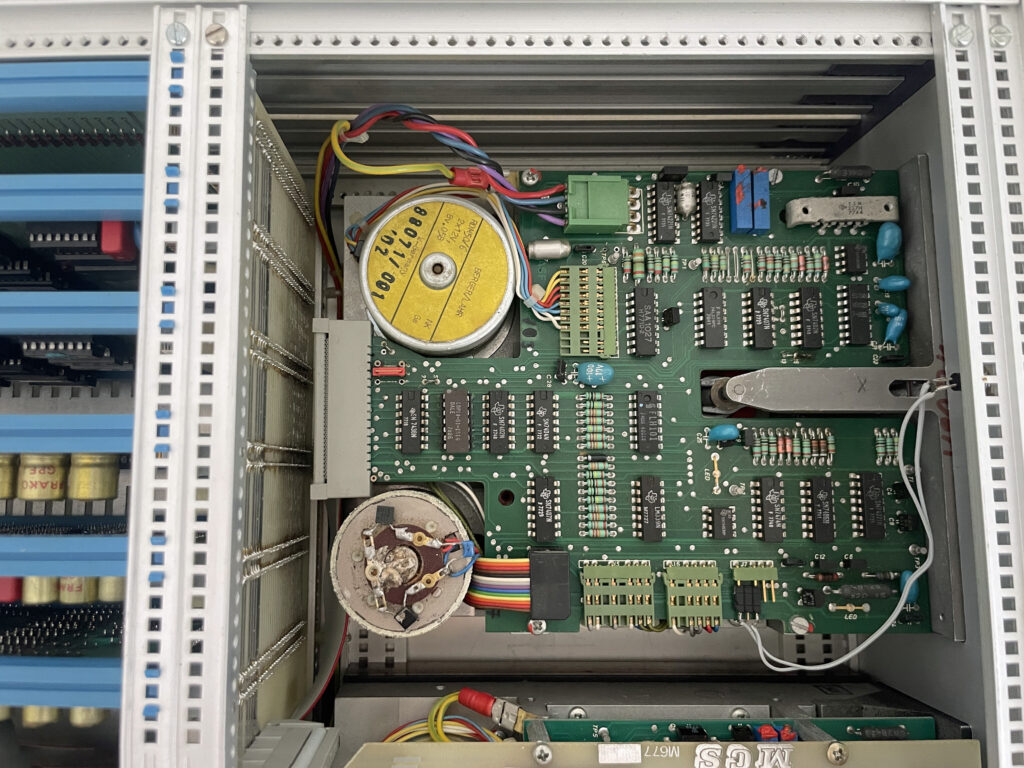

Photos of a MCS BETA 8 -E2 system.
(found on https://forum.classic-computing.de/ made by fini)
