The 680x/650x Test system allows to test, with the CPU itself performing the test the MC680X and MCS650X families.
Both the Motorola MC6800 and MOS MCS6502 (which had a very similar design) have spawned many dozens of additional processors/microcontrollers that differ in pin out, features, process (CMOS/NMOS) speed, on board memory and other things, yet retain the same basic 6800 or 6502 architecture. Thus it made sense to make a single test system to handle as many of these CPU/MCU’s as possible.
The 680x/650x board uses expansion boards, as well as a new feature called the PCP (Pin Configuration Panel). The PCP handles differences in pin-puts for the various chips to be tested and configures the base system to know which chip is being used. The expansions boards handle anything else, as well as providing LEDs for additional testing of some chips.
The board consists of the base components of a MC680x/MCS650x system:
• 40-pin ZIF socket – for the tested CPU – provides easy replacement of the CPUs.
• Clock generator with 4MHz crystal oscillator for generating 1, 2 or 4MHz system clock of the CPU (not user selectable alas)
• 2K x 8bit (HM6116/TC5516) static RAM for variable and stack area.
• 8K x 8bit (D2764) EPROM holds the test programs. This program supports 4 push buttons as inputs, and 8 LEDs, as output devices. It also provides basic and special feature test routines.
• 24-pin header provides facility to configure the different function pins of different CPU/MCU types.
The board requires a single +5V power supply (200mA) provided through a mini-USB connector.
There is a power switch and power indicator LED in the lower right corner of the test board.

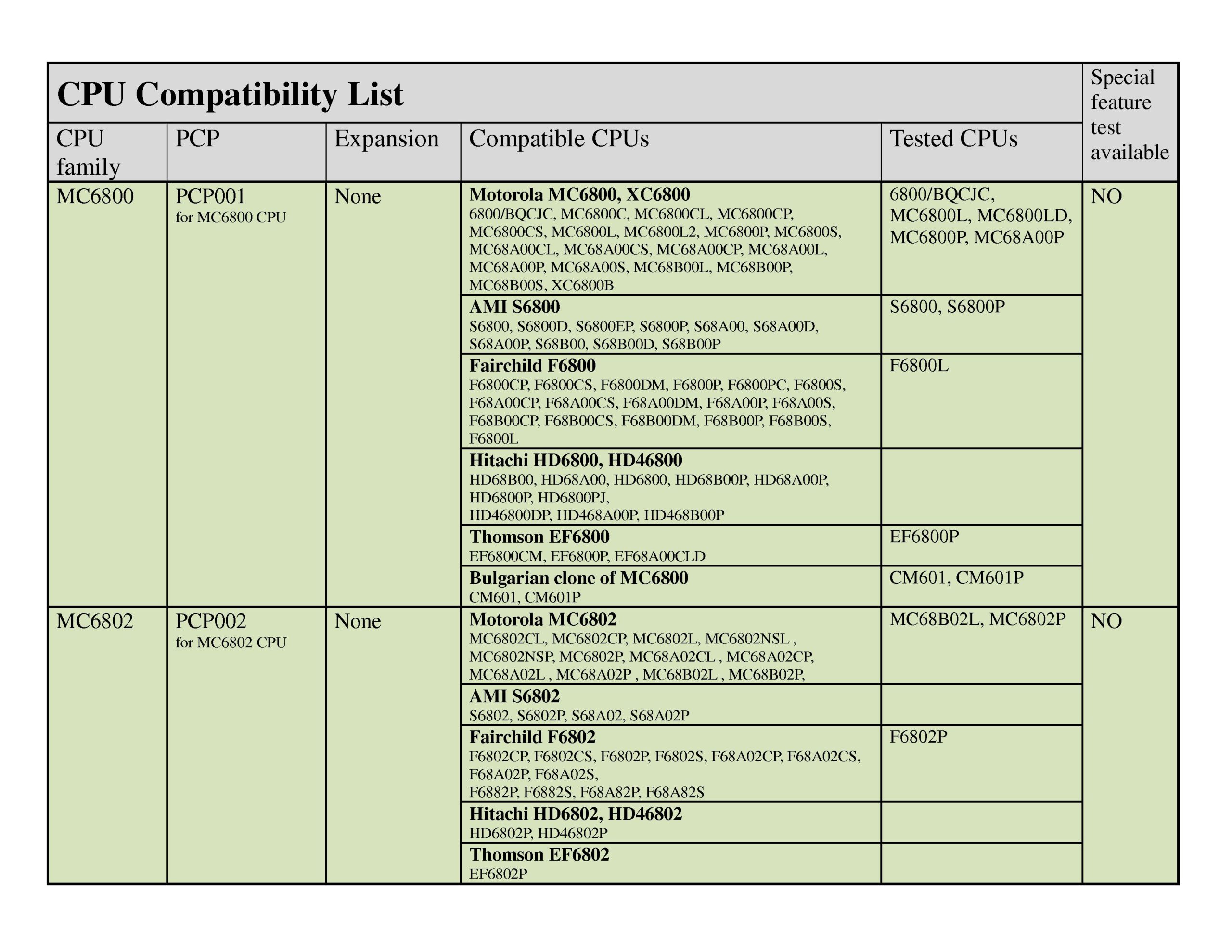

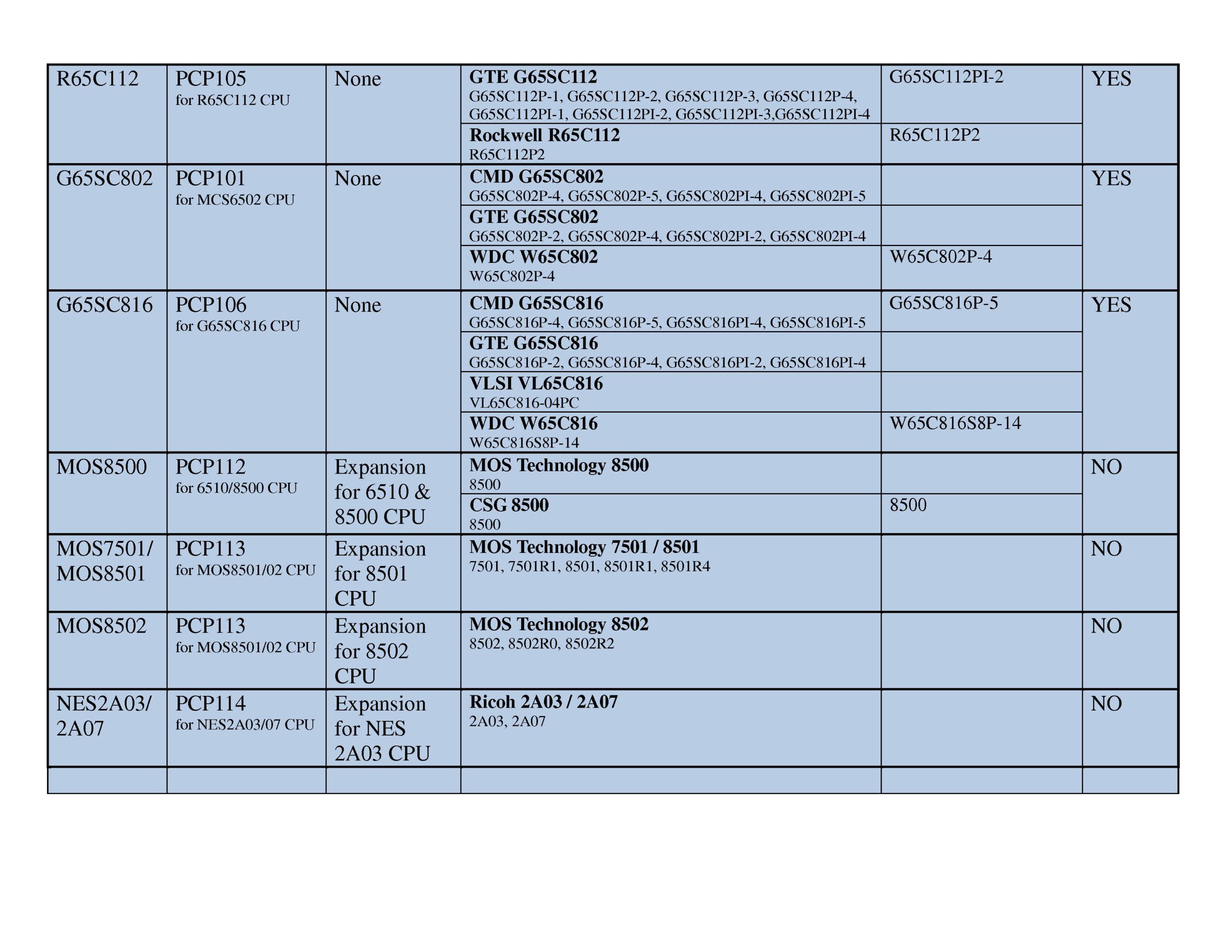

6800 Family (NMOS, any speed/manuf)
6800
6801
6803
6802

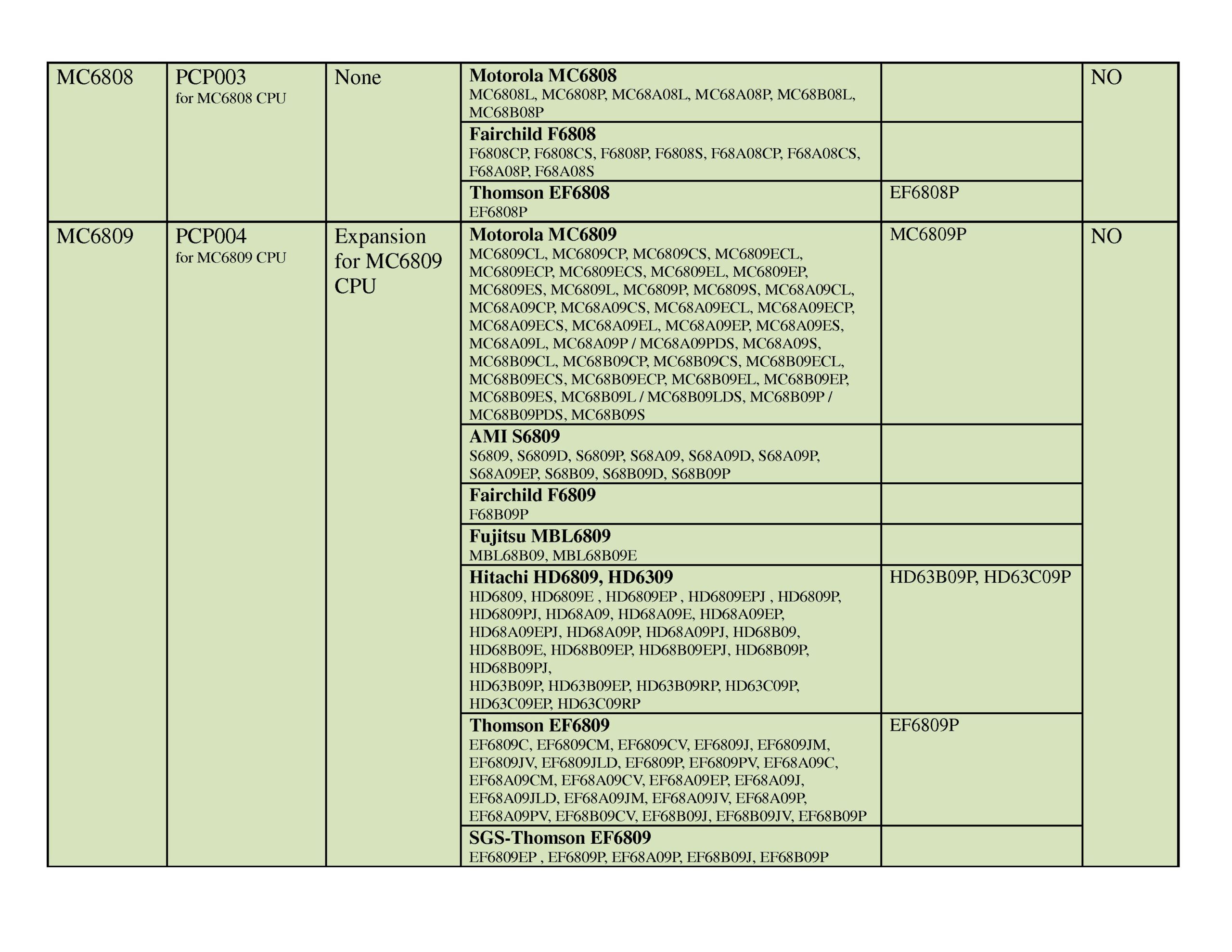

6808
6809/E

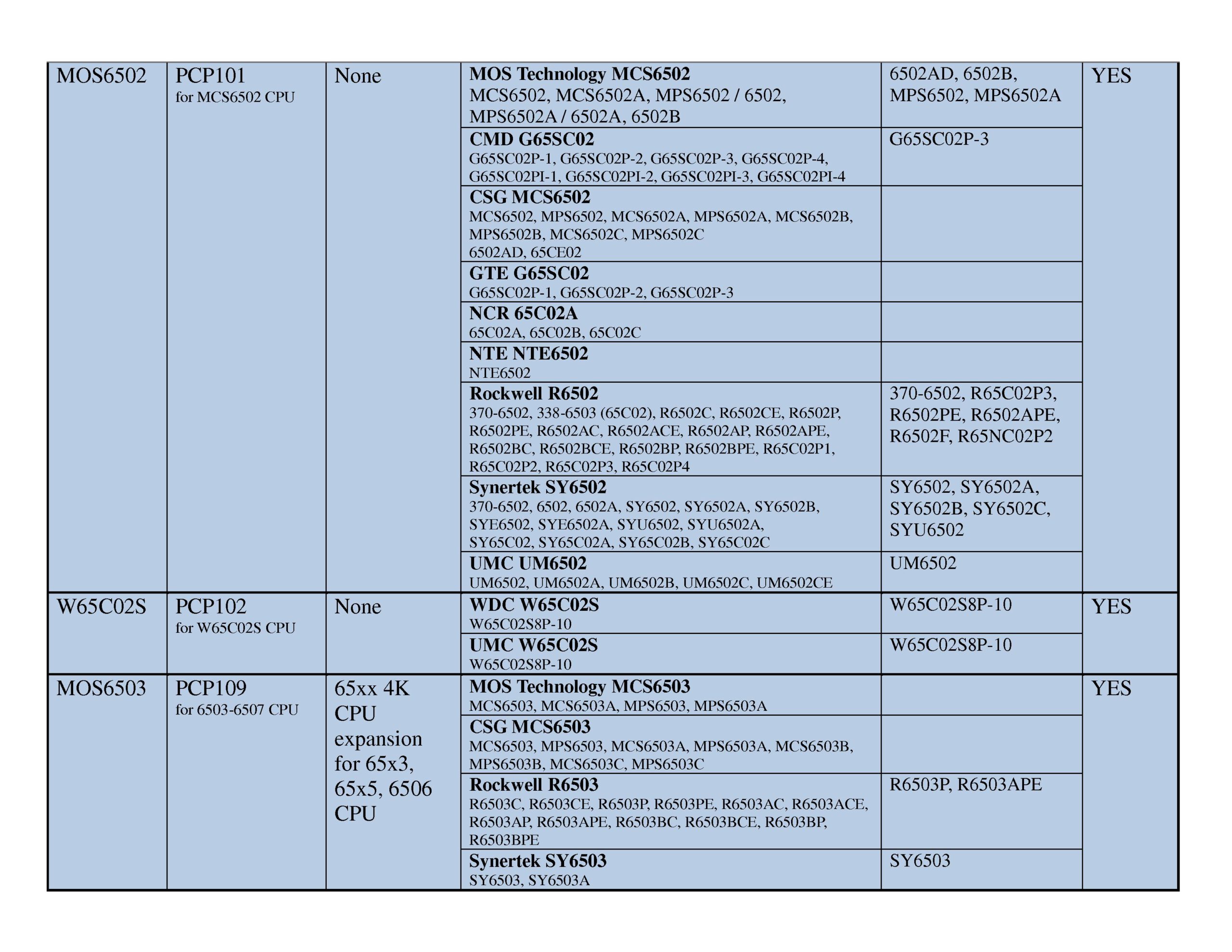

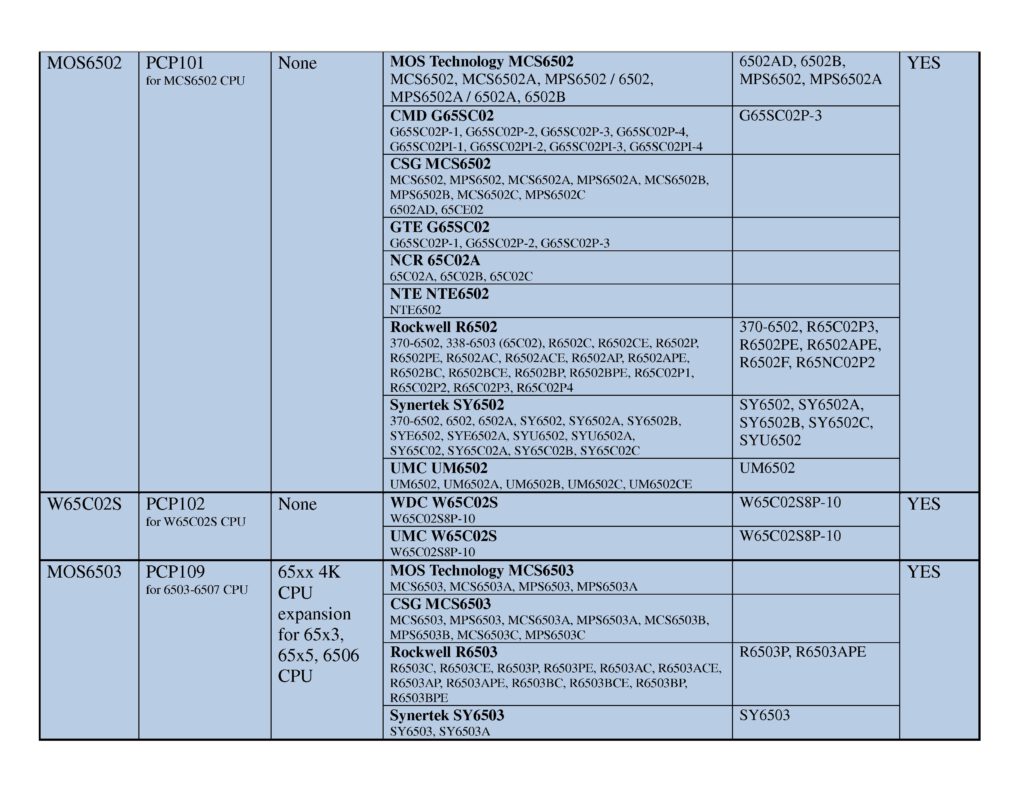

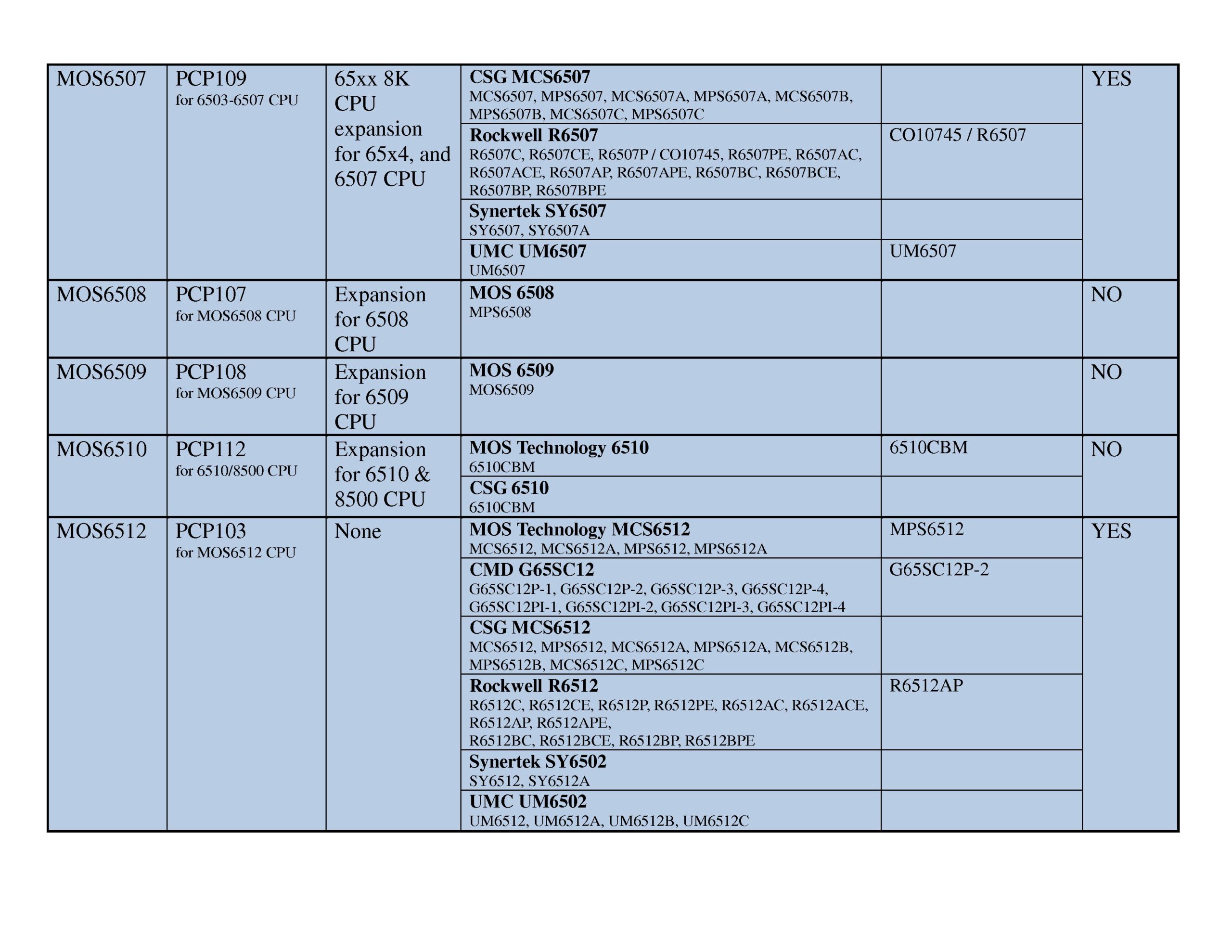

6502 Family (any manufacture/speed)
6502/65C02 NMOS/CMOS
65C02

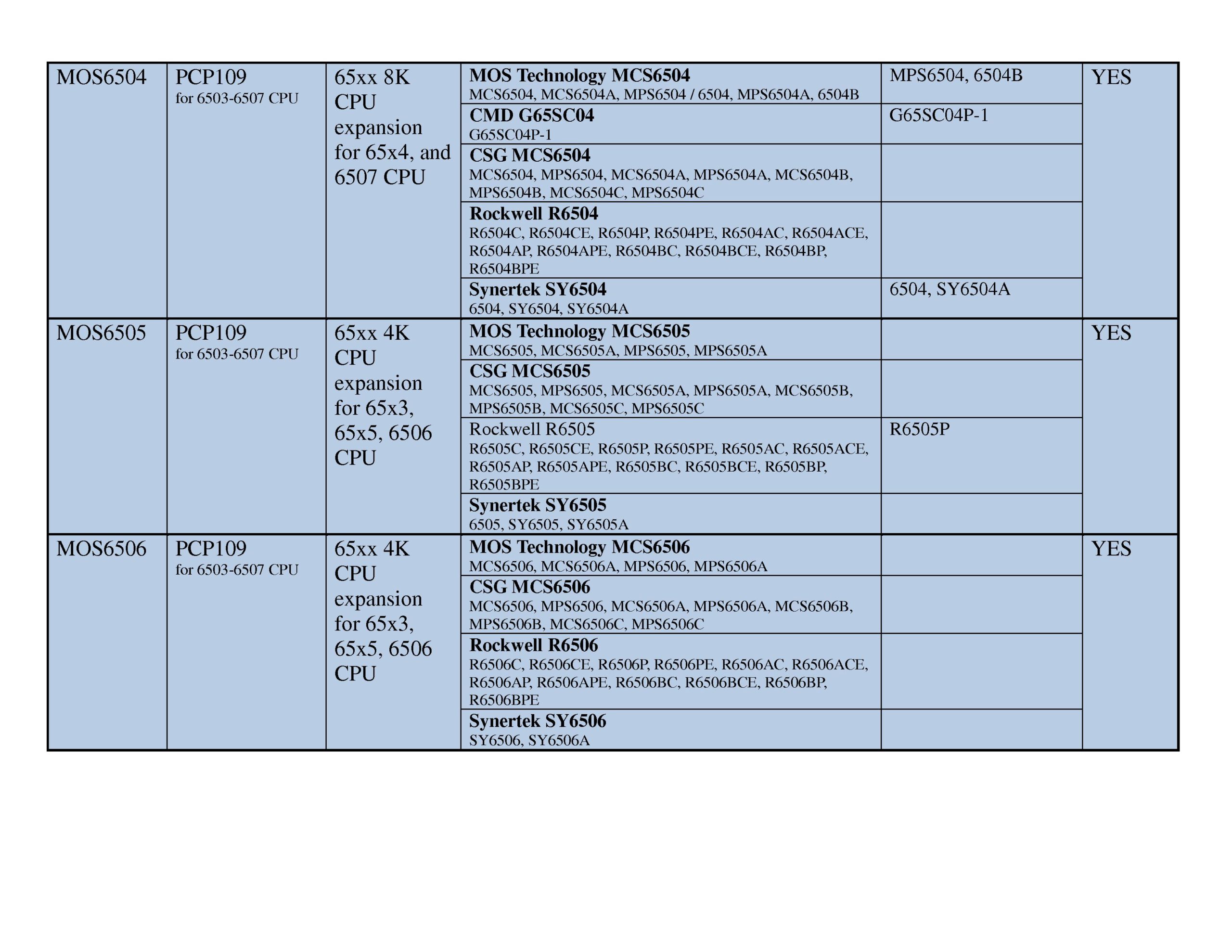

6503/04/05/06/07/08/09
WD65C02S
6510 (as used in Commodores)
6512/65SC12

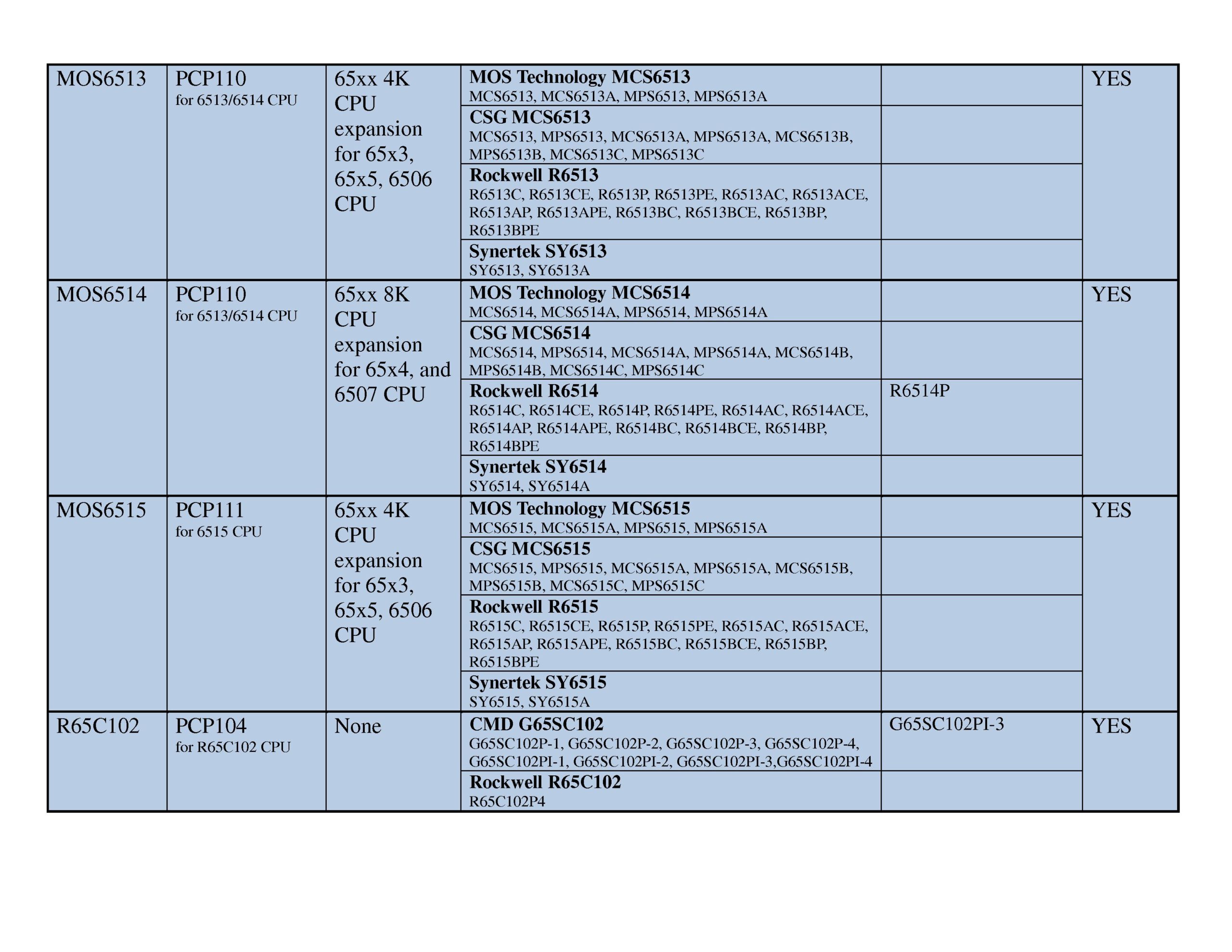

6513/14/15
65C102/65SC102

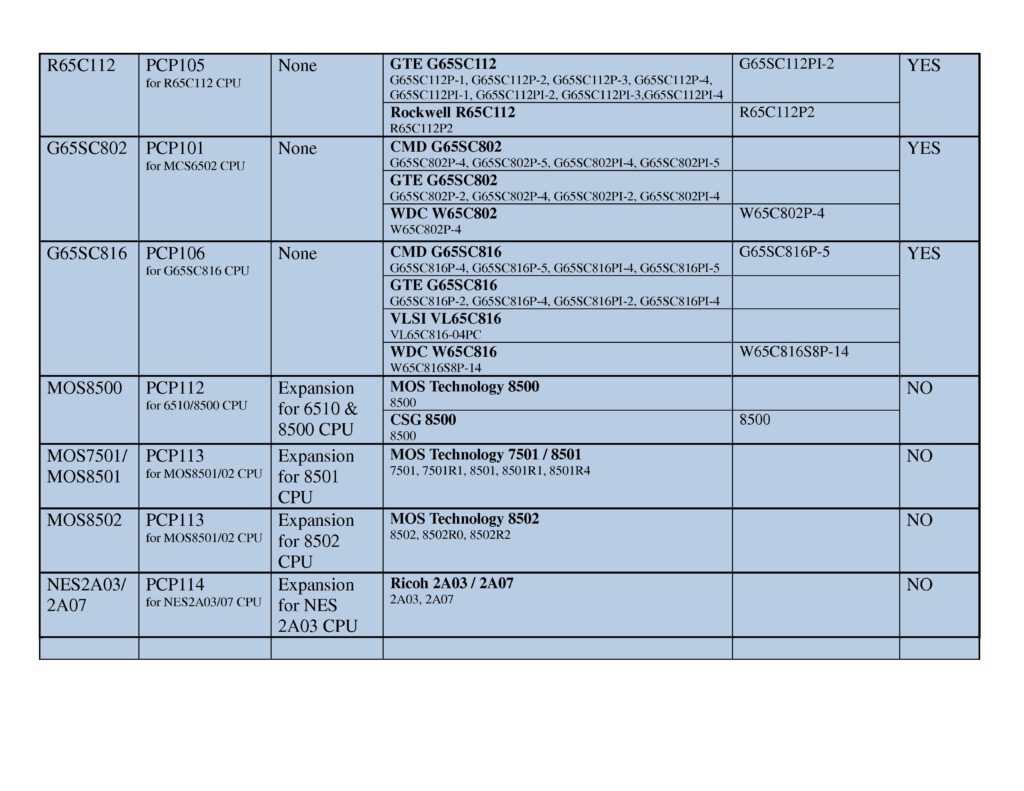

65C112/65SC112
65SC802
65C816/65SC816
8500/8501/7501 (as used by Commodore)
Ricoh 2A03/2A07 Nintendo CPU
Special feature test (available for 6502 family CPUs)
To activate the special feature test SW1 and SW4 should be pressed together and held for 3 seconds.
The program checks if the ROR bug is present.
Then checks if jump error on page boundaries is present.
Finally checks the technology of the inserted CPU.
D1 – ROR bug detected
D2 – Jump page boundaries bug detected
D3 – not used
D4 – not used
D5 – NMOS CPU detected
D6 – CMOS CPU detected
D7 – 65C802 or 65C816 CPU detected
D8 – not used
