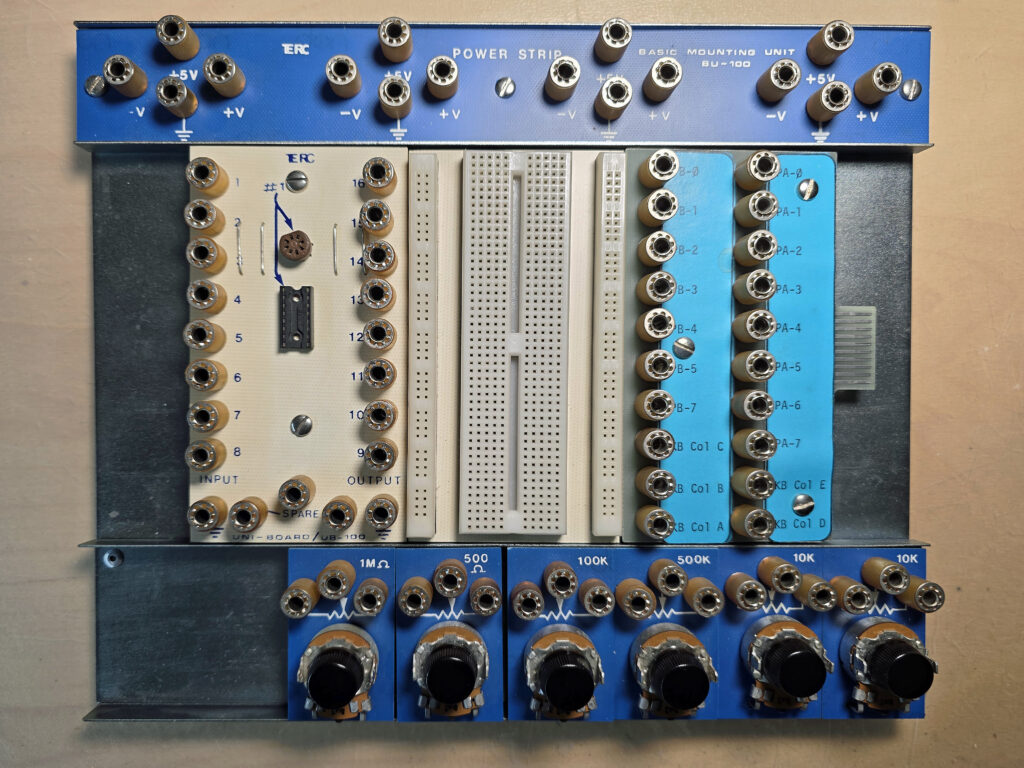

A recent acquisition, the TERC (Technical Education Research Centers) KIM-1 Interface set. An educational tool to work with the KIM-1 from the 80ties.

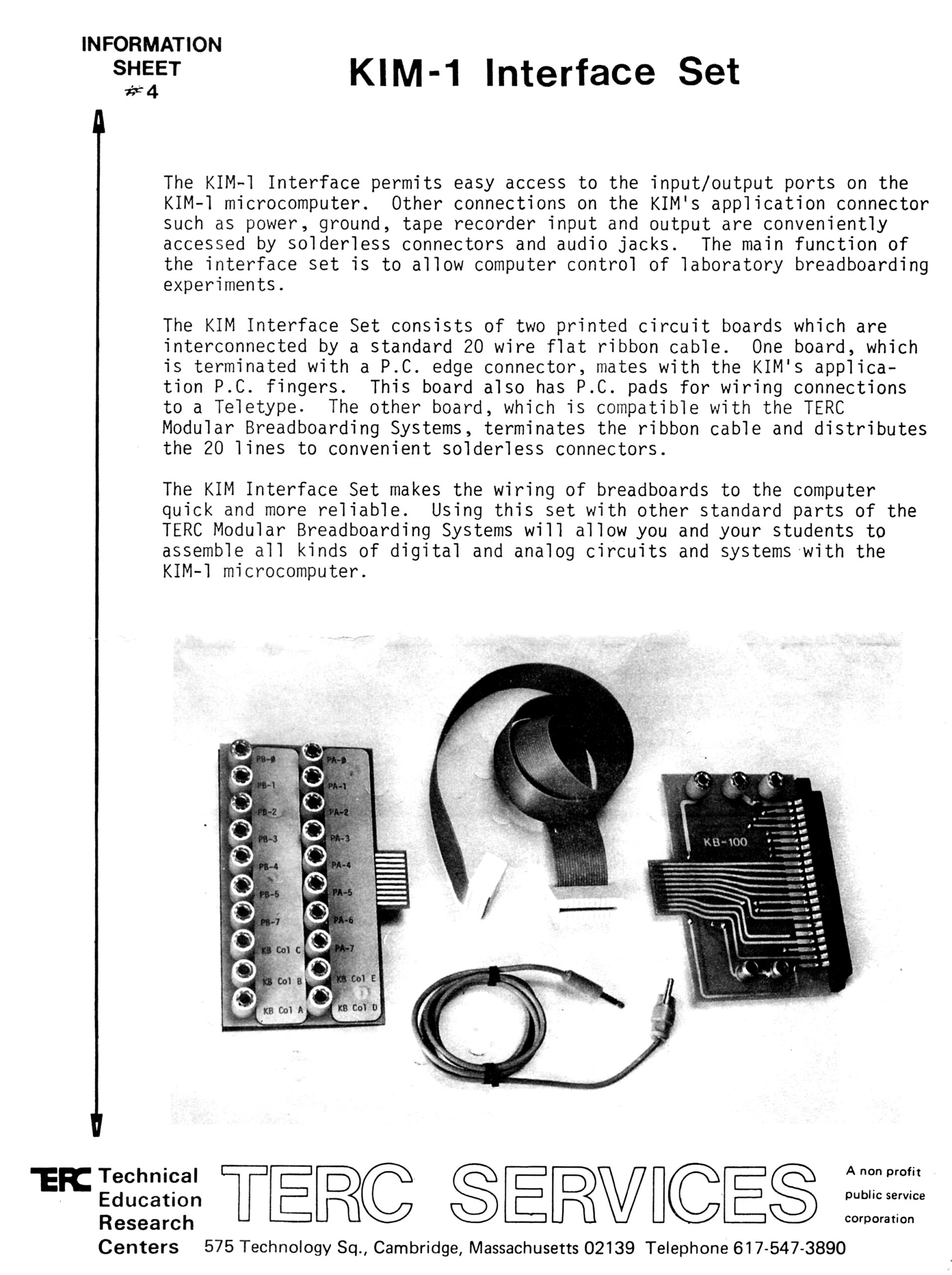

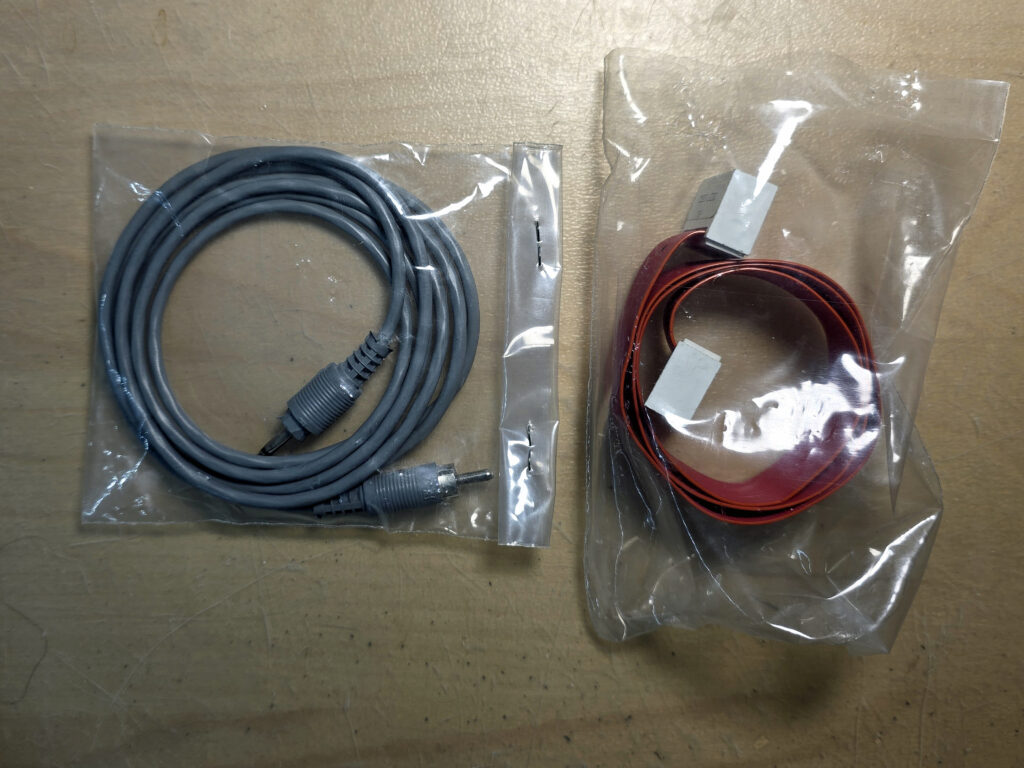

The KIM-1 Interface permits easy access to the input/output ports on the KIM-1. Other connections such as power, ground, tape recorder input and input and output are accessible by solderless connectors.
