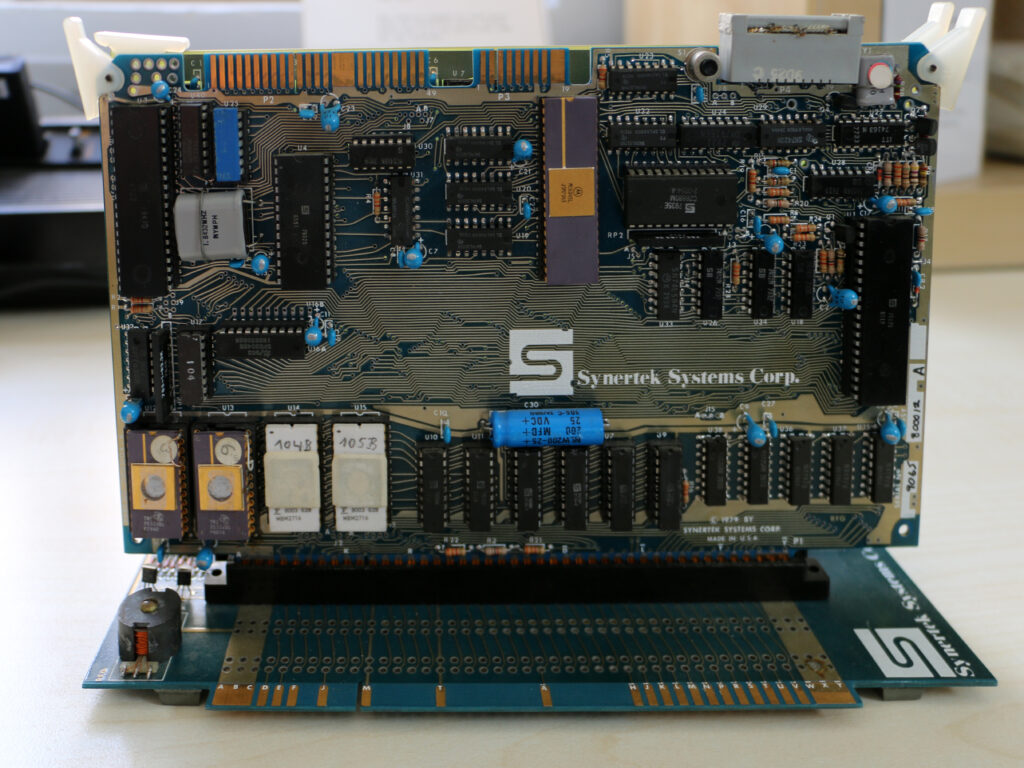

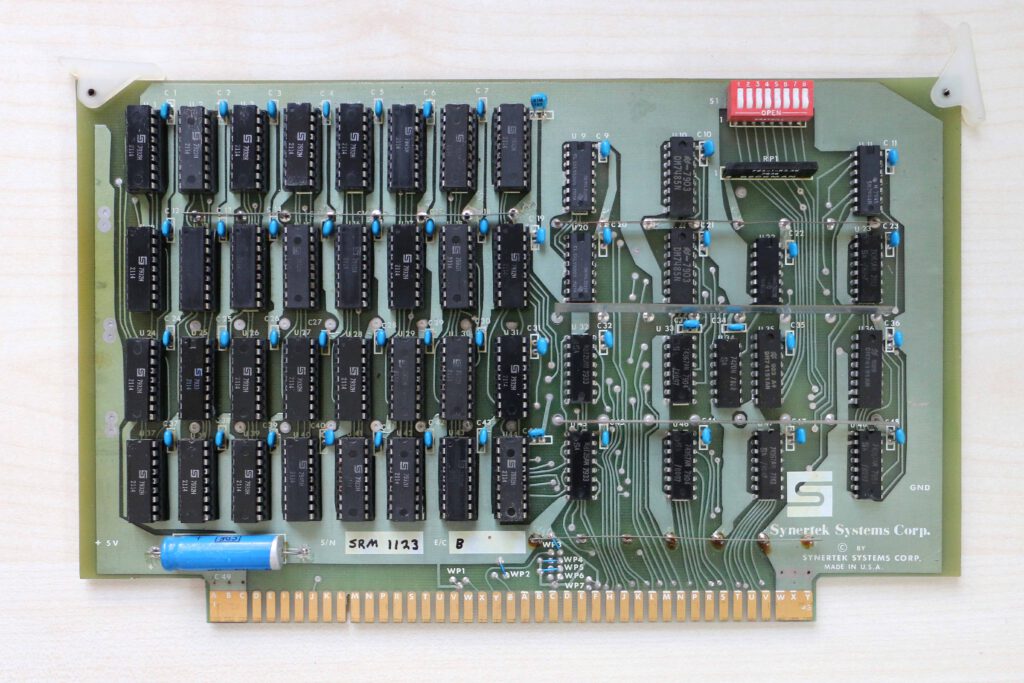

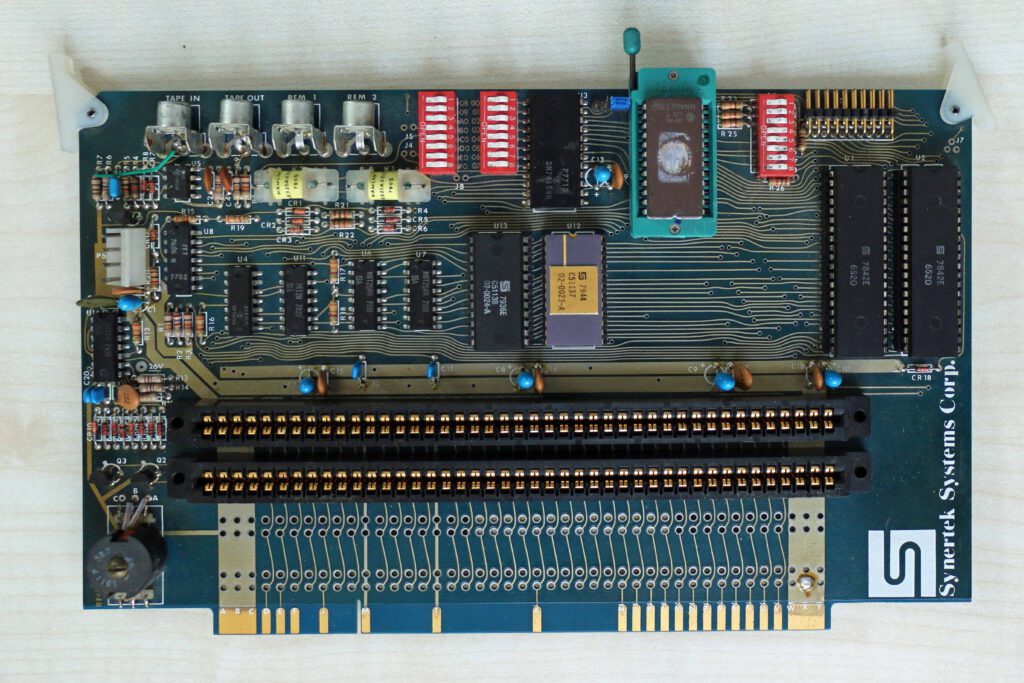

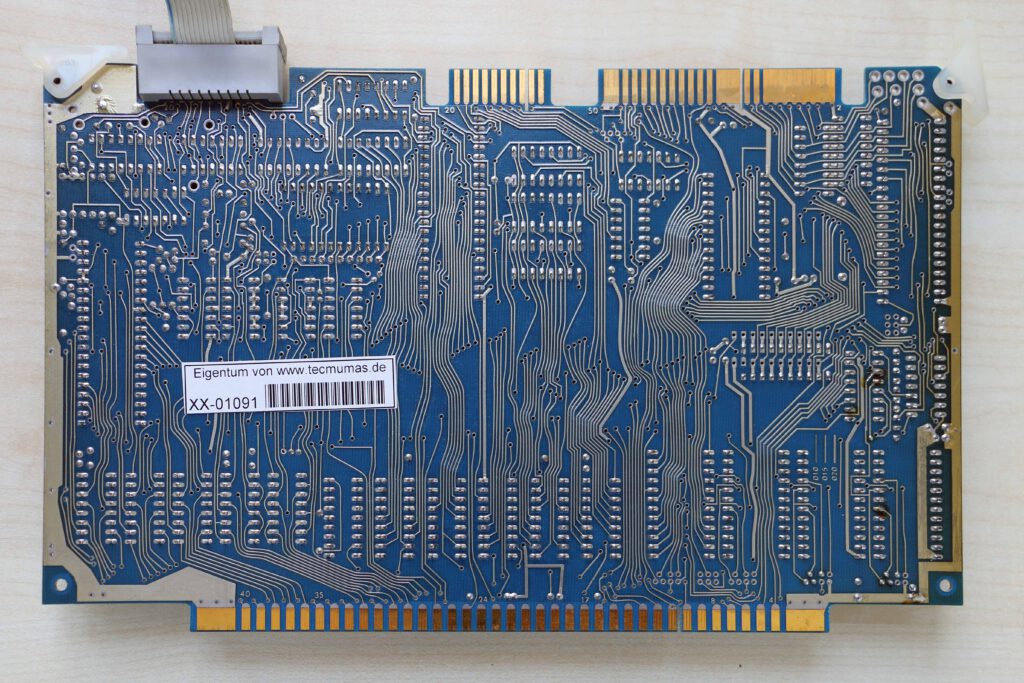

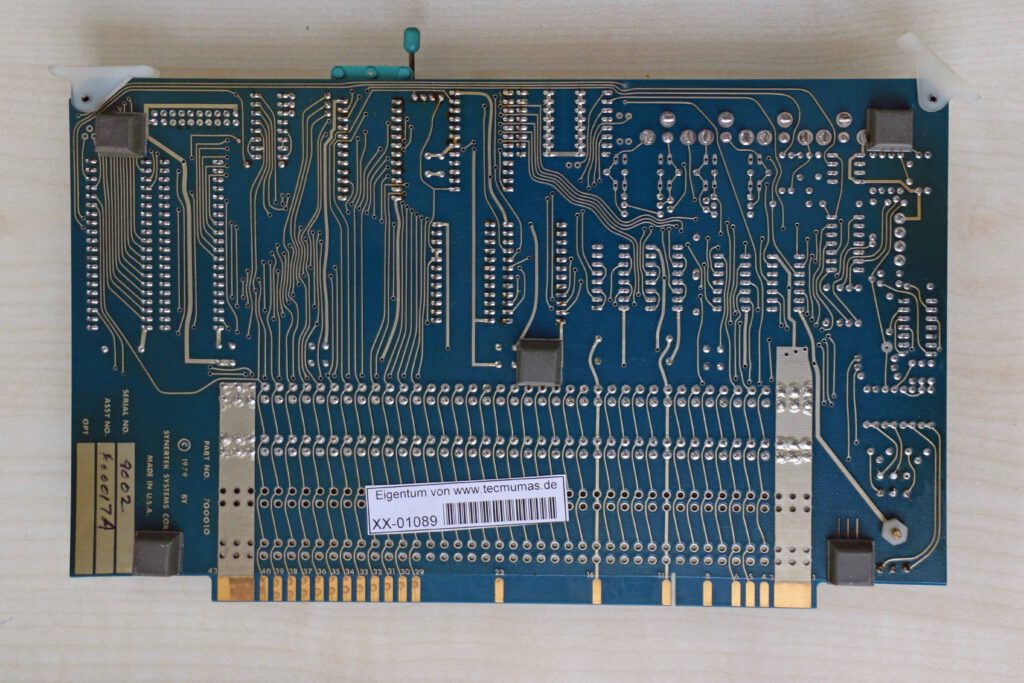

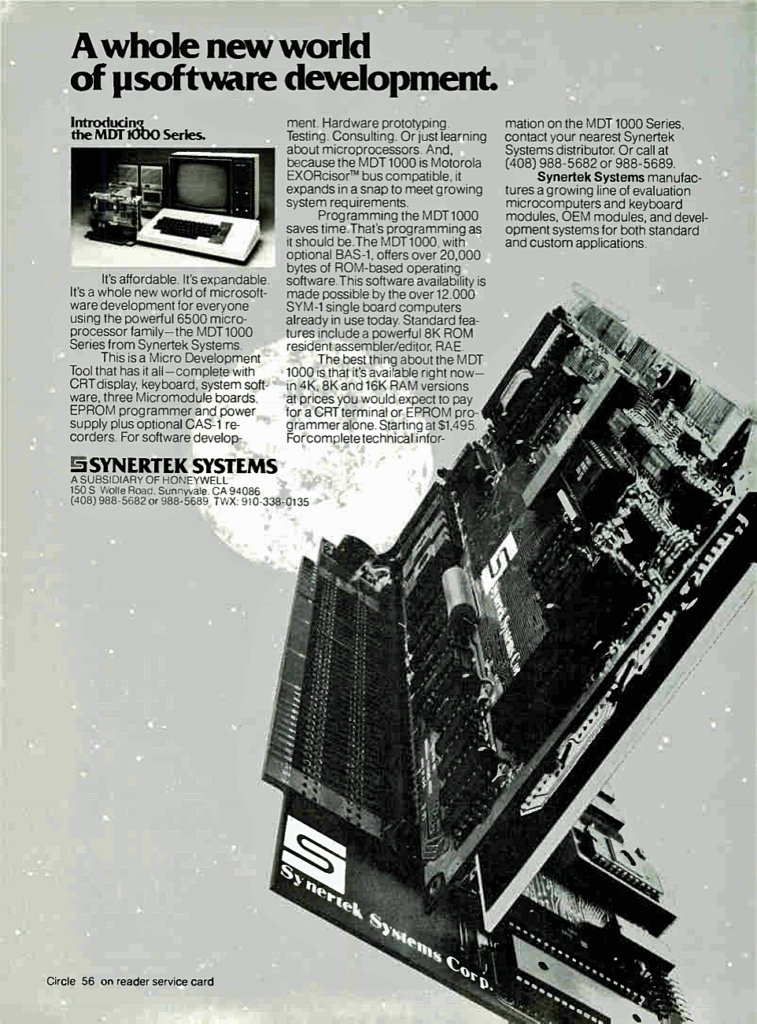

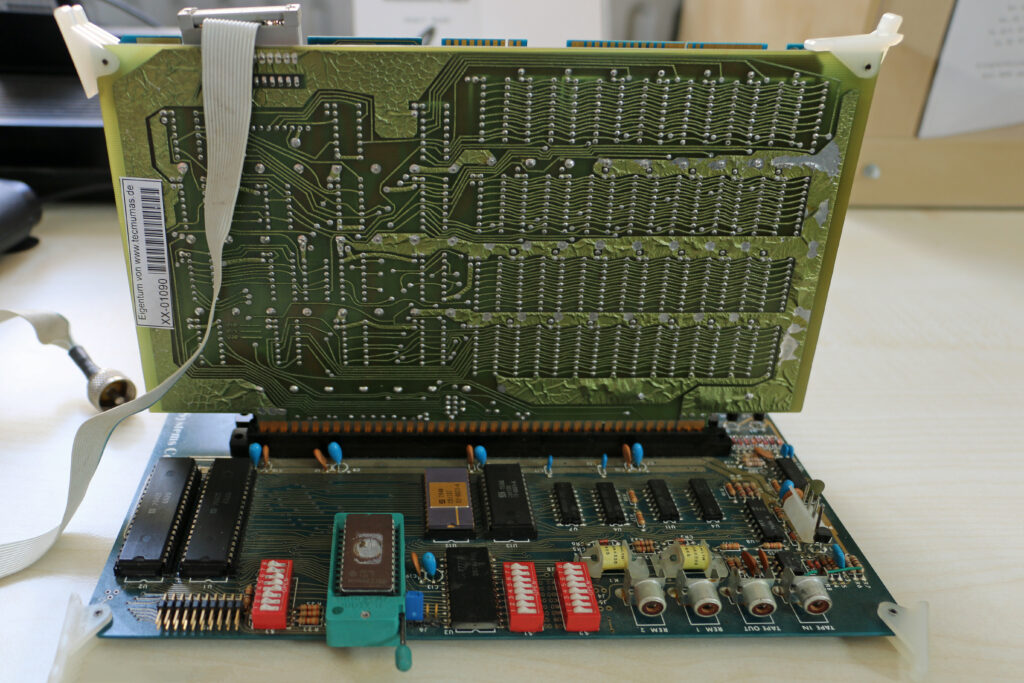

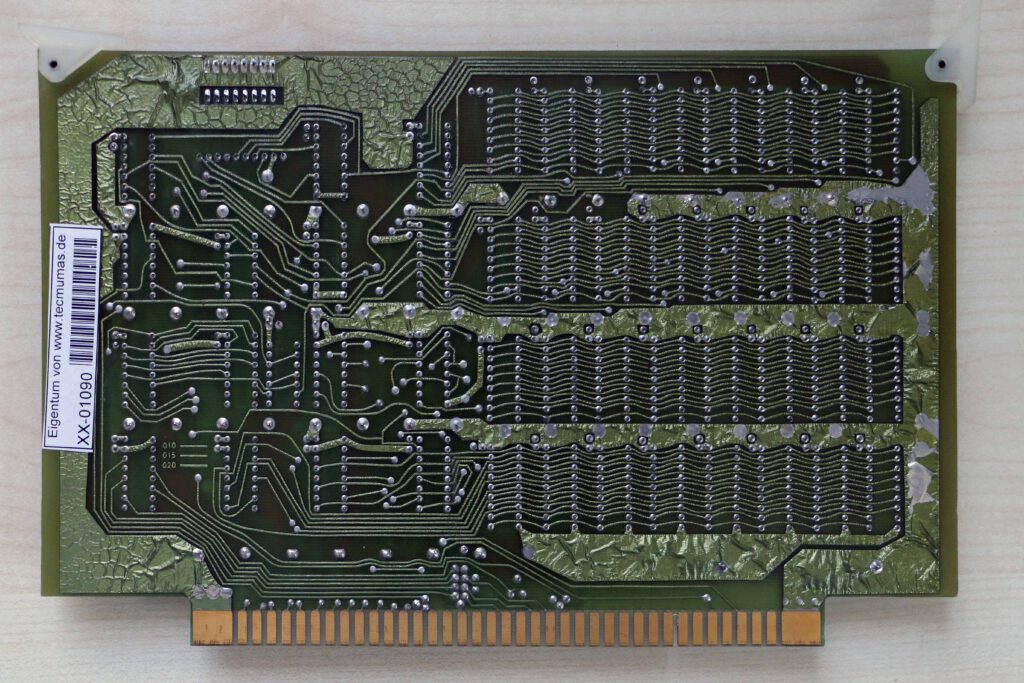

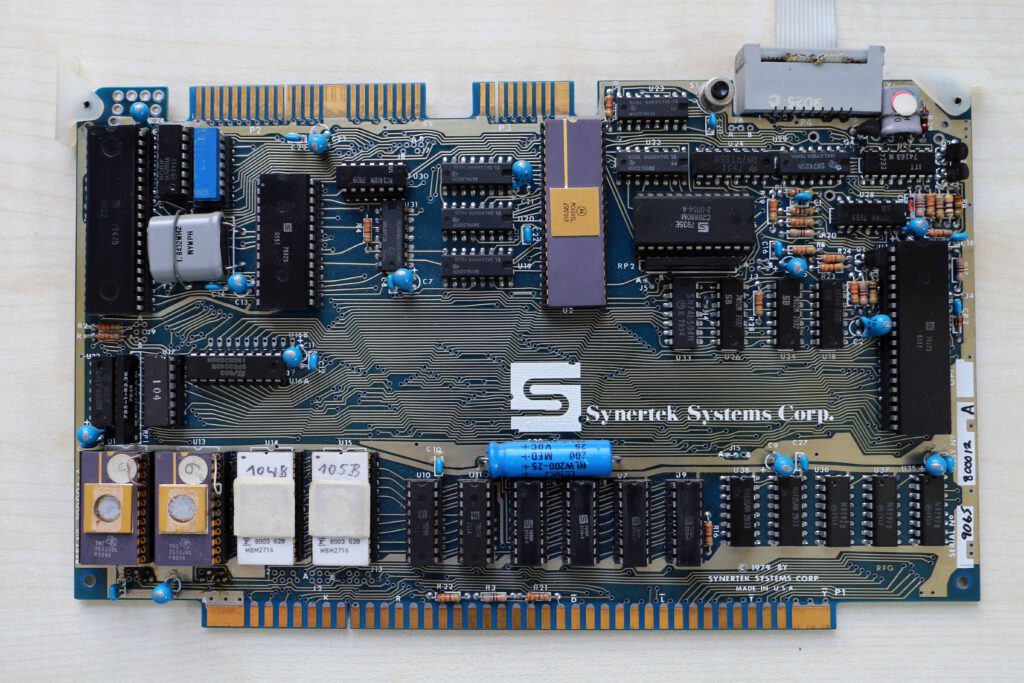

During a visit to the TECMUMAS museum I found a Synertek MDT 1000 development system. Only known to me from an advertisement in Electronics 1980. Matthias allowed me to make detailed photos!

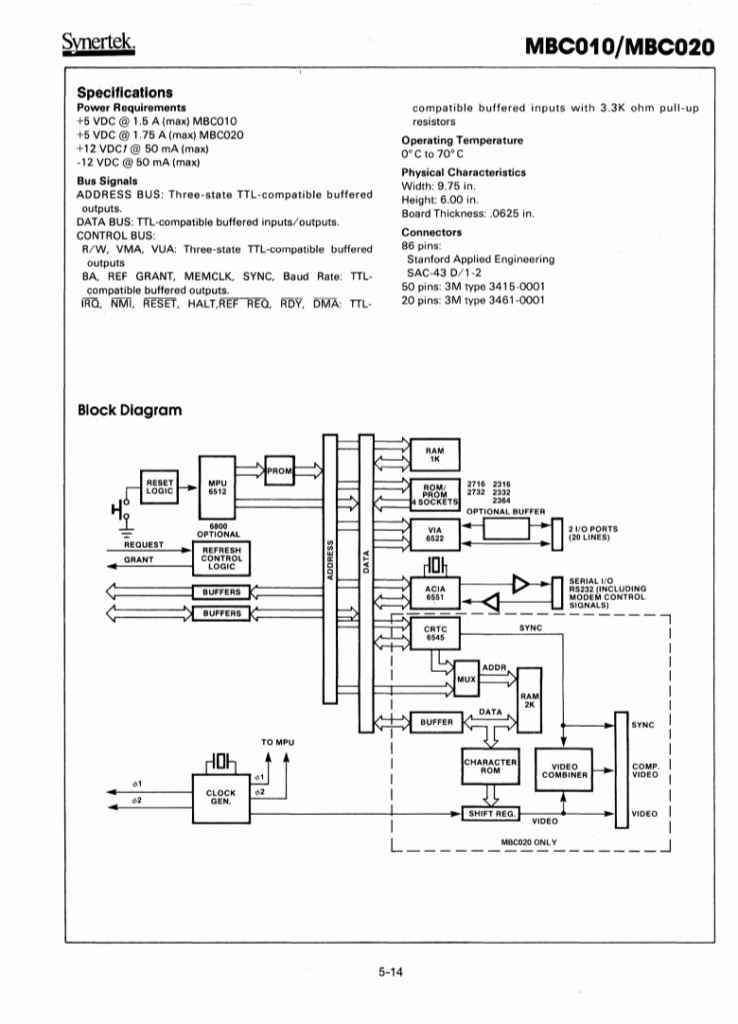

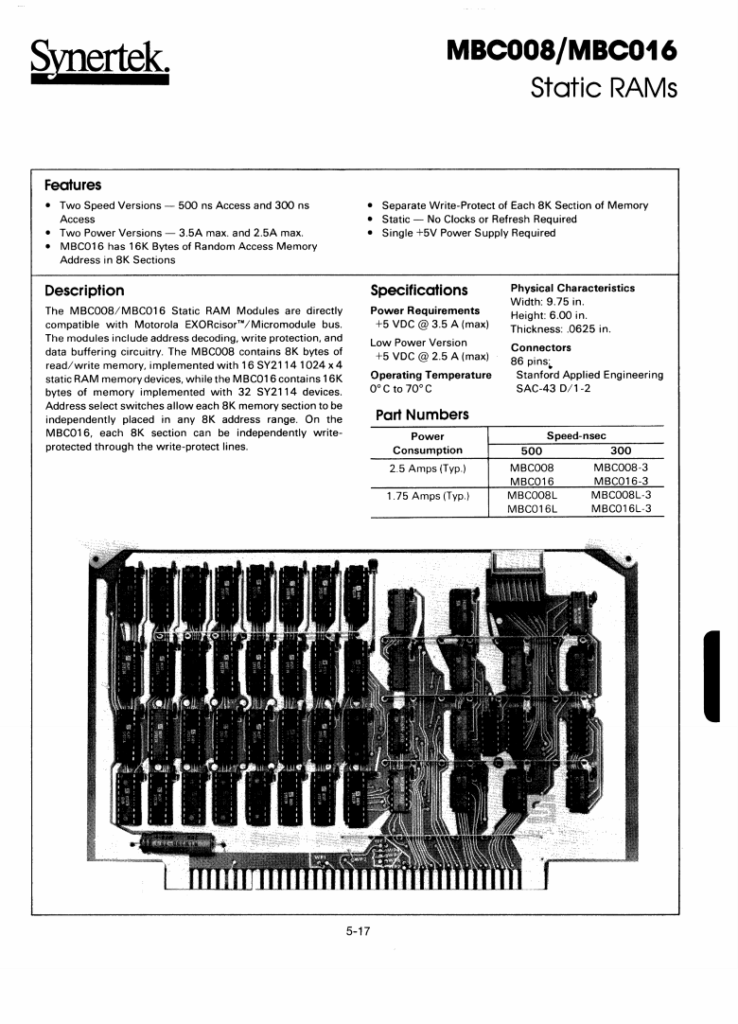

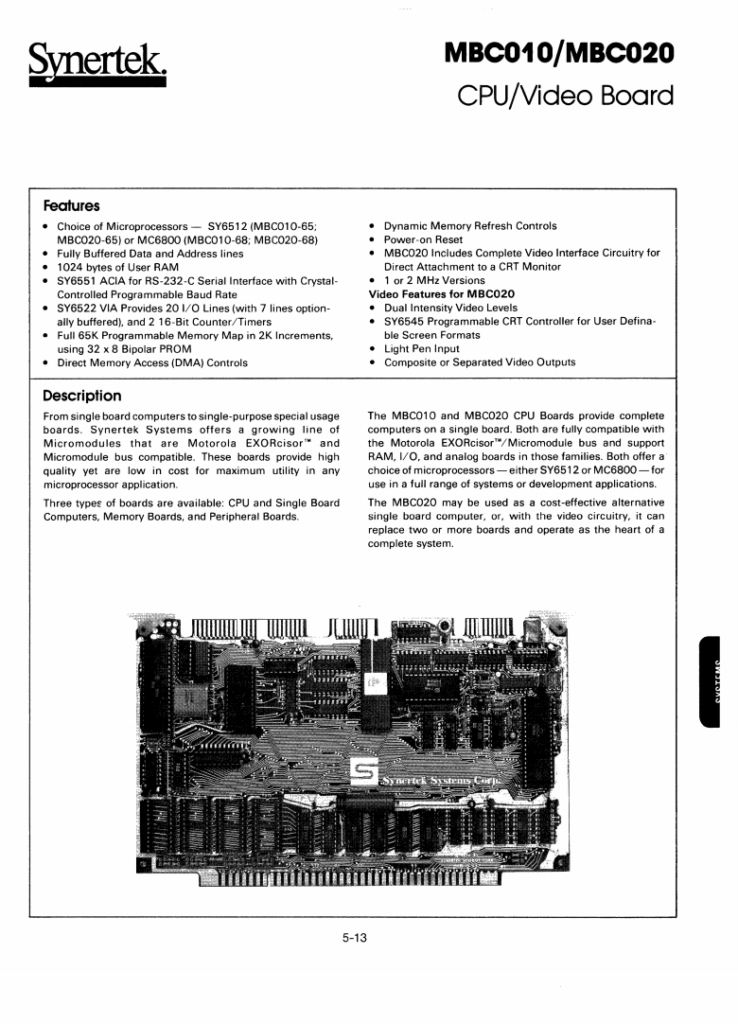

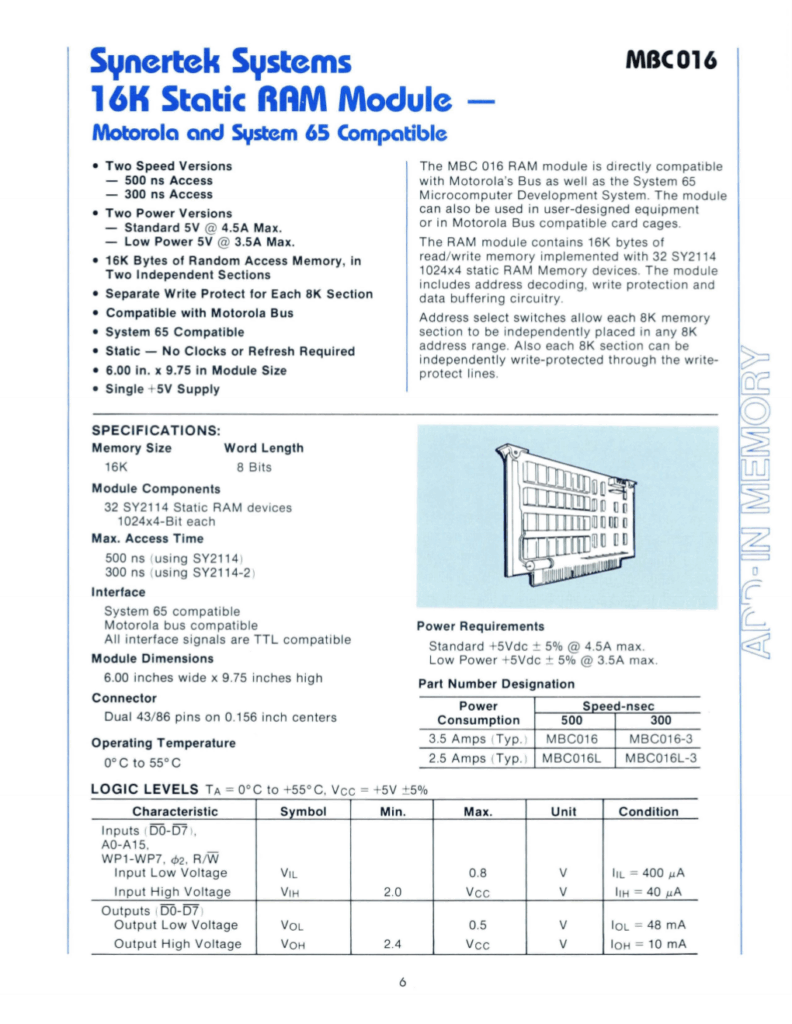

Some pages from Synertek databooks refer to parts of the MDT 1000 system
Coming soon scan of the MDT 1000 manual, TECMUMAS Matthias will do that soon!
