A RAM ROM I/O board with flexible addressing.
- 32K RAM in 2x 16K pages
- 8/16K (EP)ROM
- EPROM Programmer (2716/2732)
- 4x 8 bit I/O ports (2×6522)
- Bank switching for RAM and ROM
 |

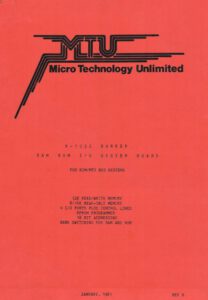

MTU K-1032 Banker RAM ROM manual |
K-1032 Expansion Board
K-1032 Expansion Board
