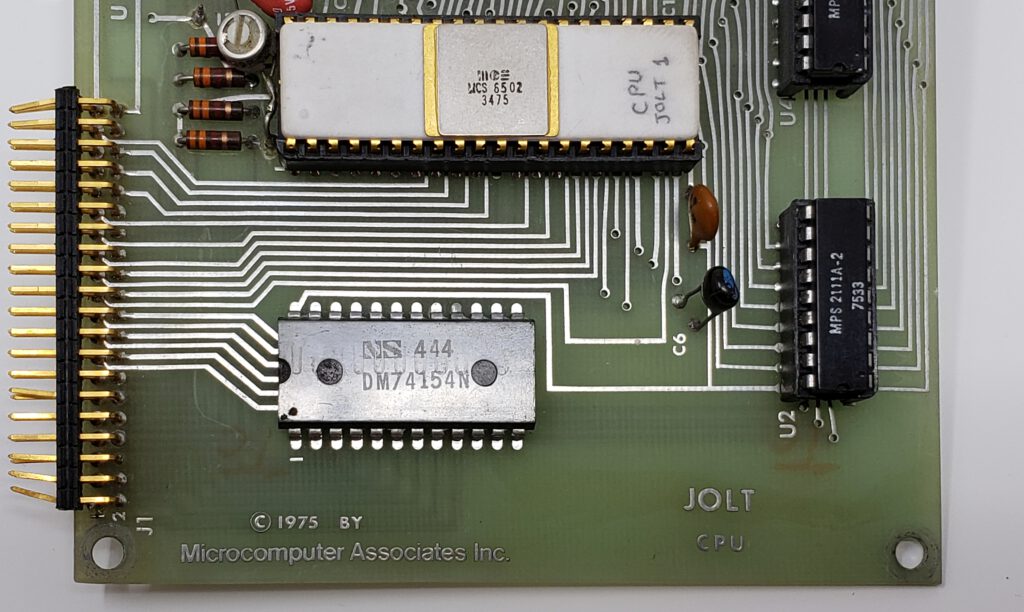

The early Jolts were equipped with a 74154 decoder for the glue logic instead of the 74LS00/04/27 of the later and more common model.

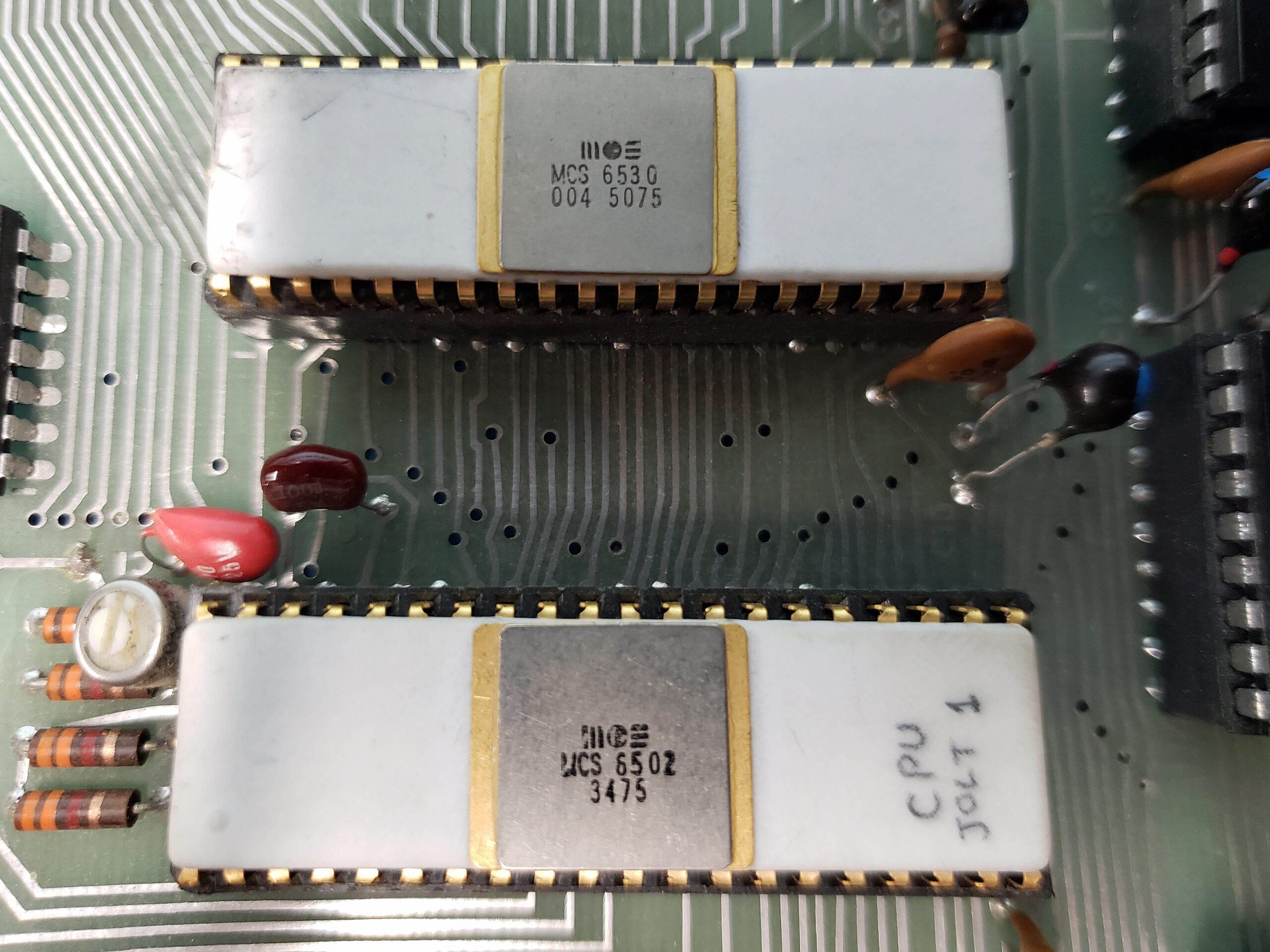

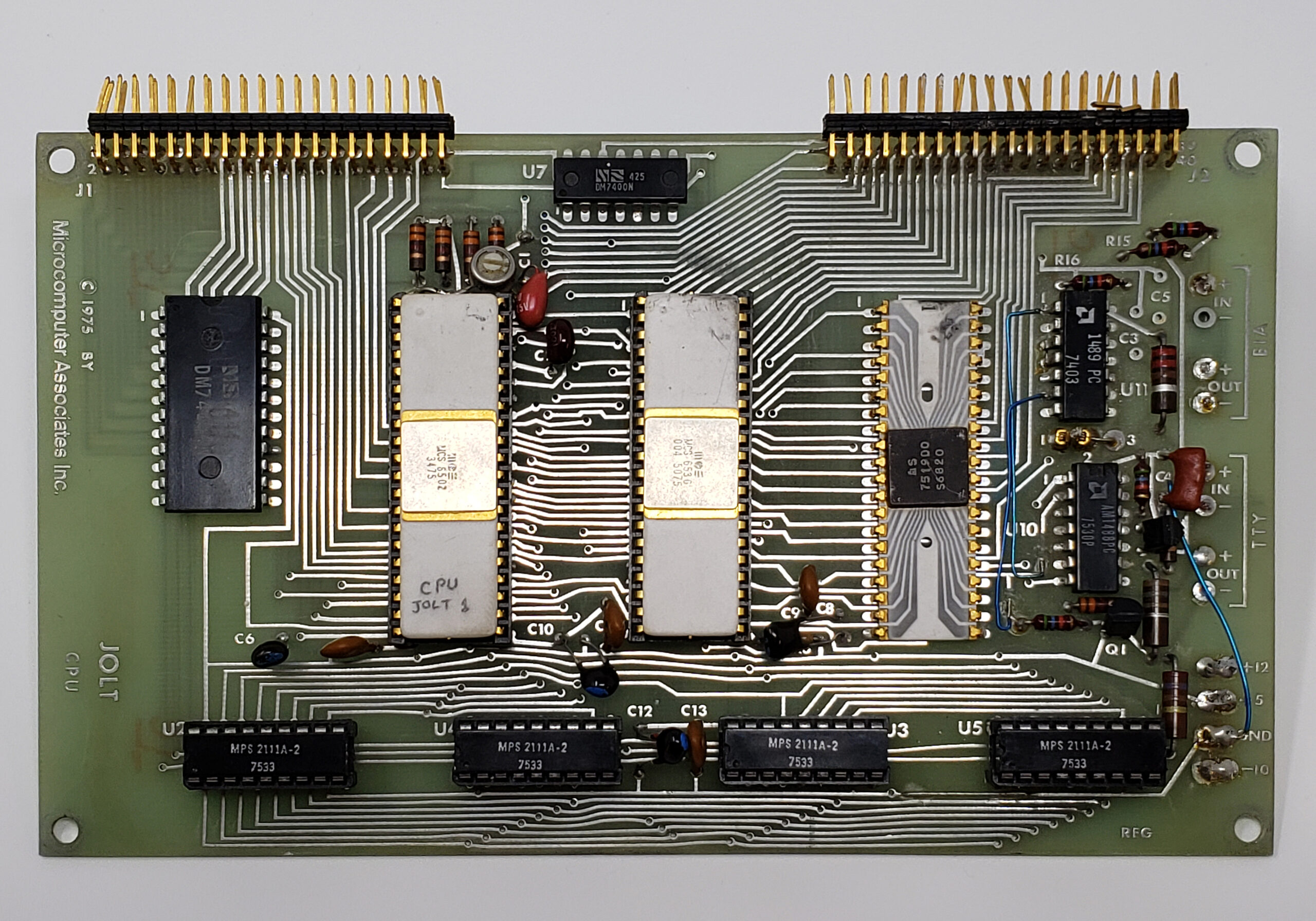

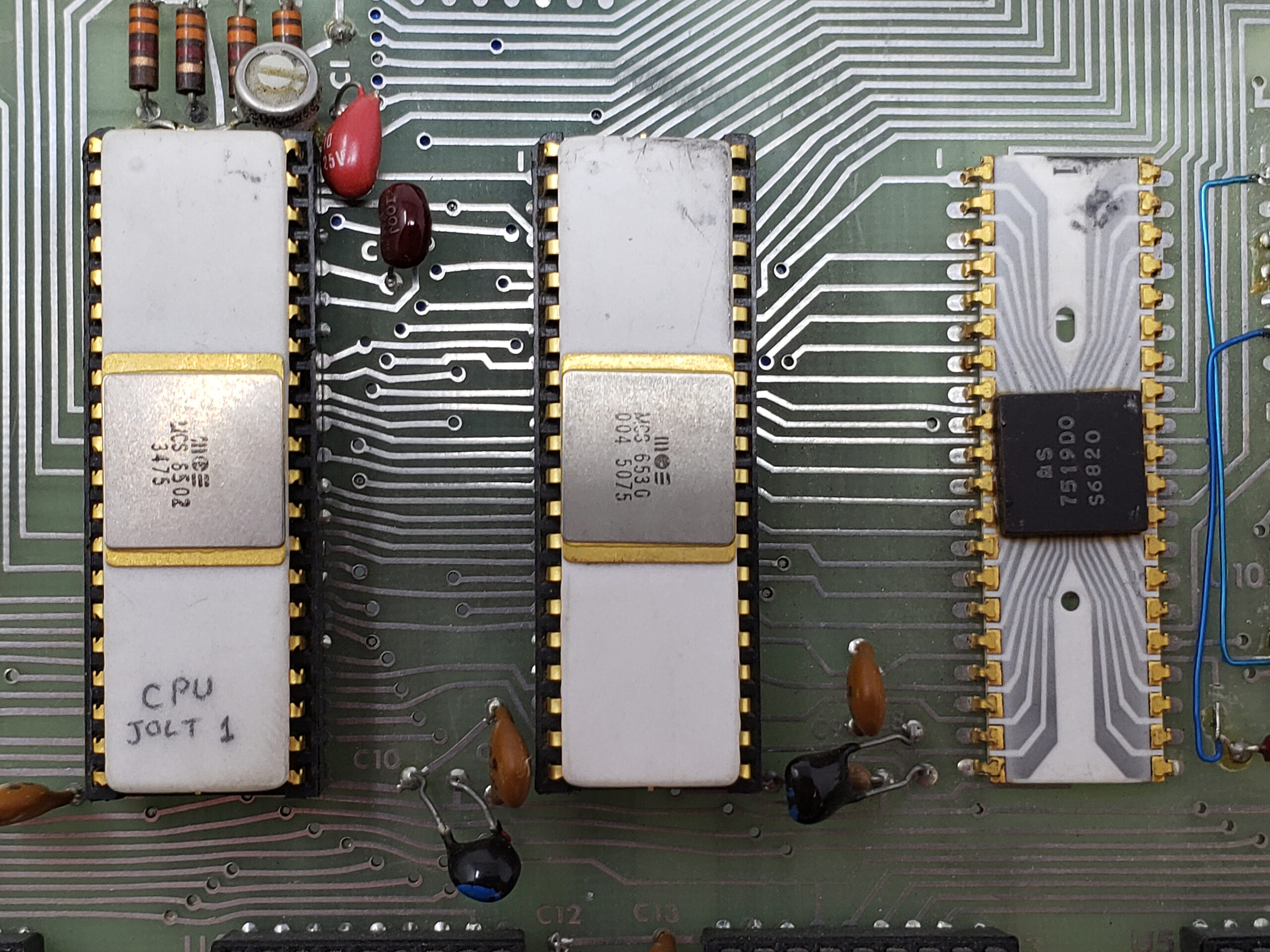

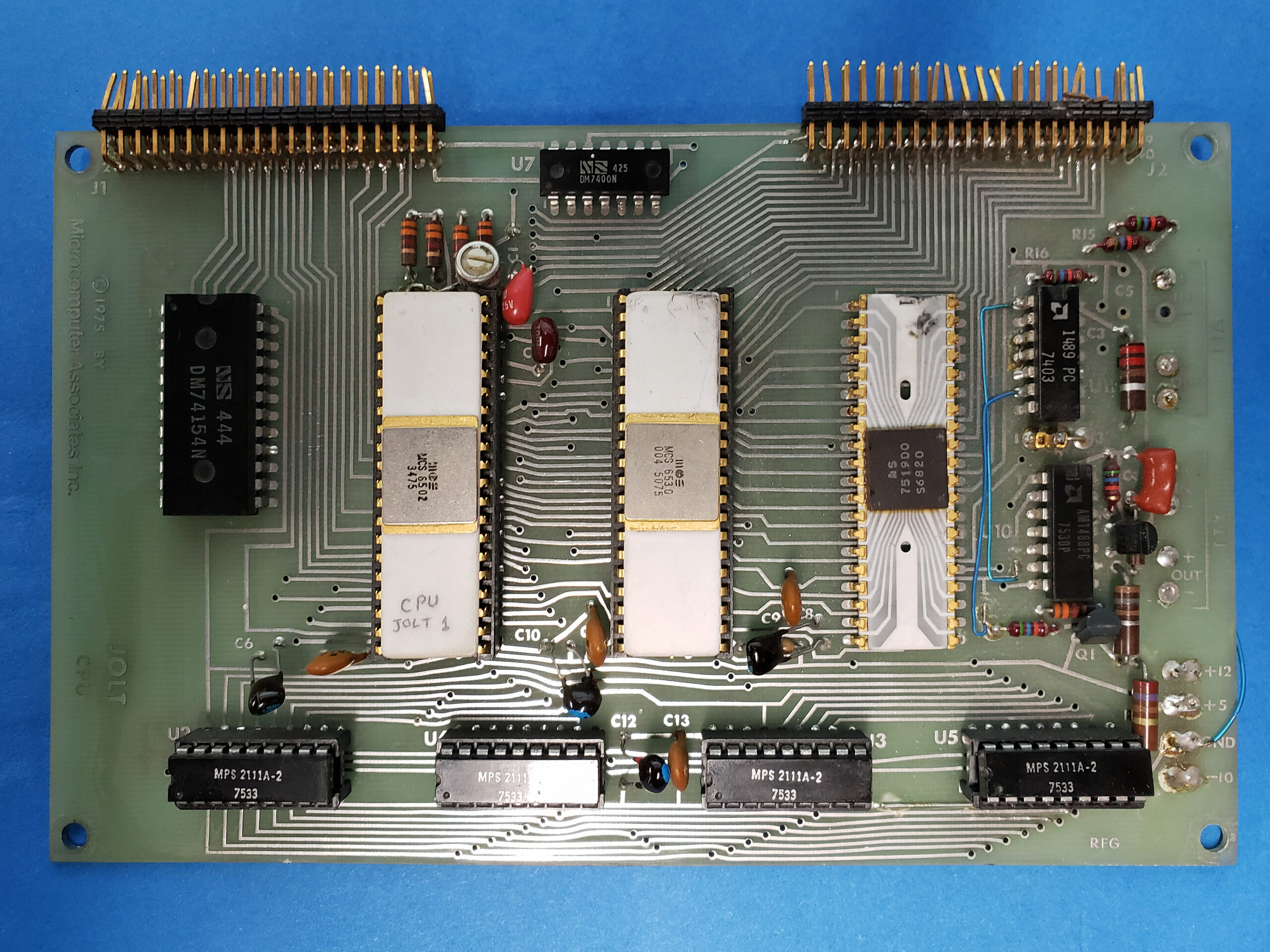

Here photos by Ray Holt (the hardware designer) of such a Jolt.
See also:
History of the TIM in the Jolt
Jolt software
On this page software for the TIM is described.
- DEMON
- Tiny Basic ad Resident Assembler Program
- Focal-65 V3D
...

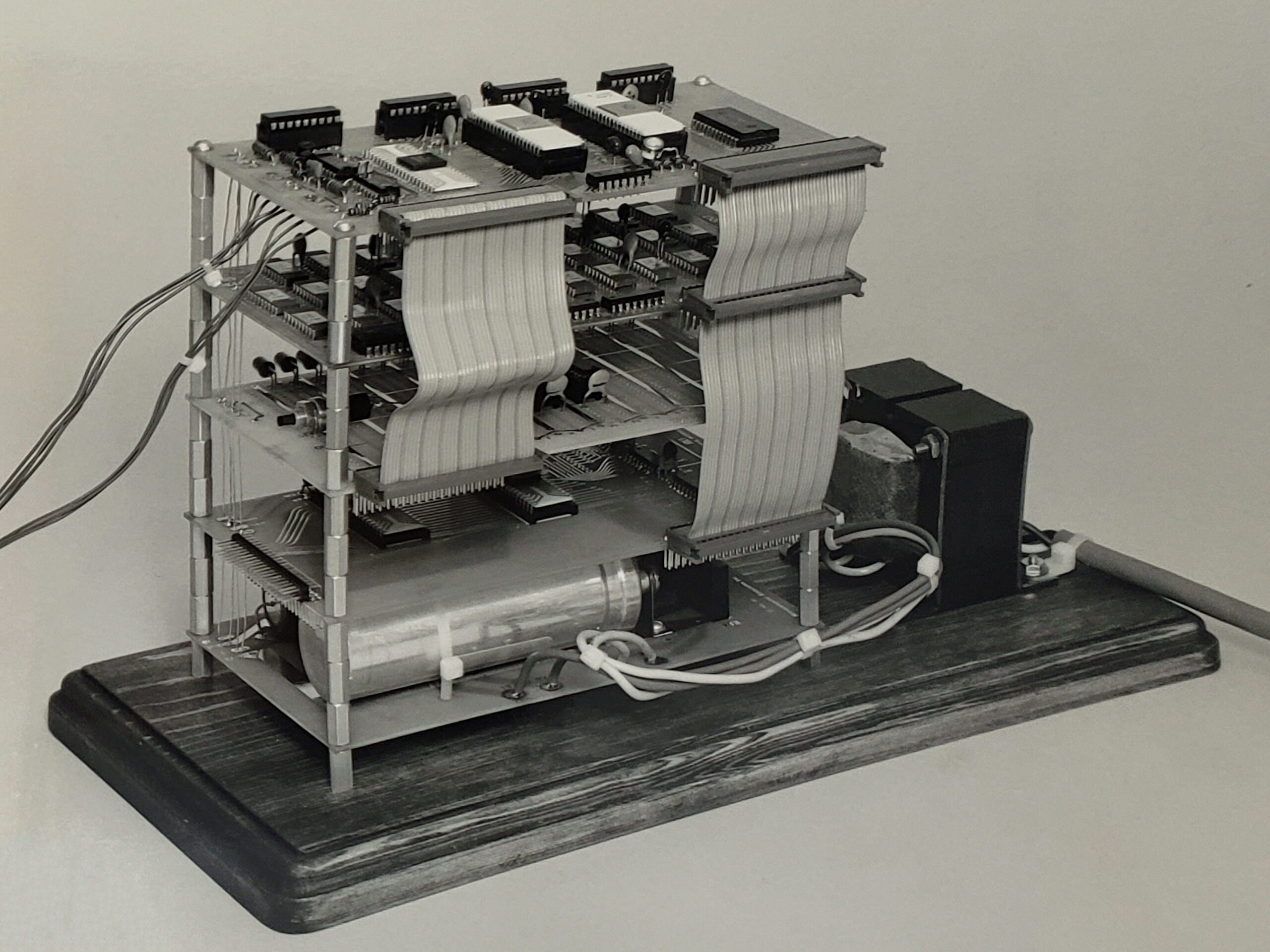

Images of the Jolt
Above photos by The National Museum of American History.
Photos from https://vinta...
A Jolt Replica
Scott LaBombard started many years ago on a replica of the Jolt. Quite a challenge, since only photos are known.
He ...
