6530 Replacement
================

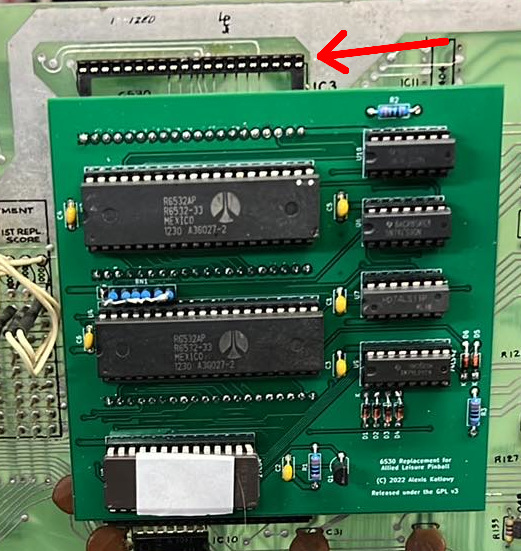

Replaces the 6530 ICs found on early revision Allied Leisure pinball machines.
See also:
6530 replacement with a 6532
The 6530 and 6532 are very close in functionality.
Nearly the same timer, 2 8 bit I/O ports, RAM.
With an external RO...
Backbit Chip Tester Pro for 6530 tests
Besides connecting a 6530 to a 6502 system, as is described in the other pages, a simple and effective test and ROM dump...
Use a KIM-1 (clone) to read out a 6530-009
Dave McMurtrie (Commodore History) has published a video showing how he dumped the ROM image of a 6530-009 (used in Appl...
Testing the 6530
A 6530 IC is to be used in a 6502 computer as standard 65XX peripheral.
Two of the tests on the next pages are breadbo...
