Modern design of Elektor Junior by Werner Beukes (Vintage Computing Group South Africa facebook group)

Gerbers, and Sprint V6 PCD design software layout of main PCB and seven segment display, and a new designed display print for more current displays..
(can be viewed with the demo version or free viewer of Sprint)

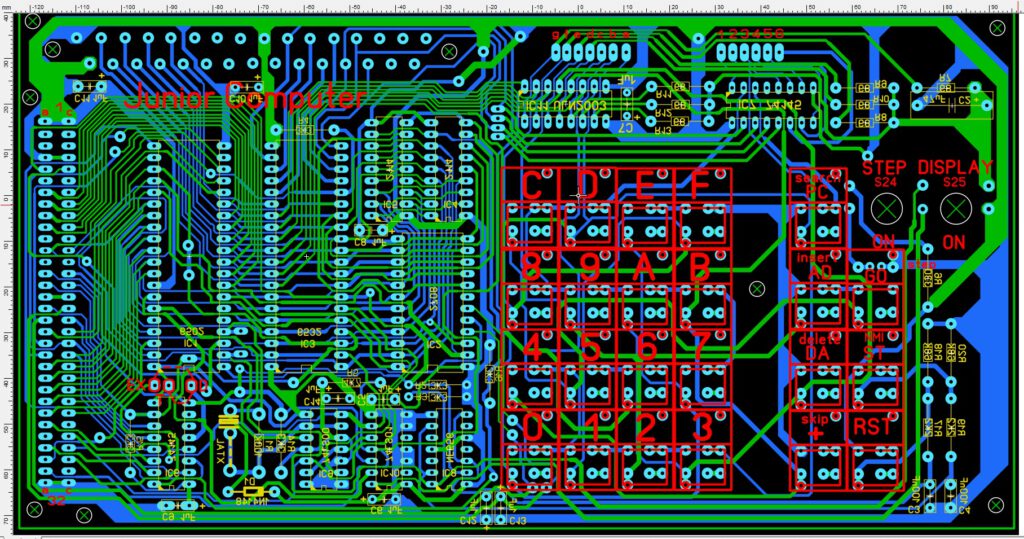

Two designs included in this gerber archive: the original reproduced by Werner and one with changes to original design: EEPROM 28C16 instead of 2708, only +5V power supply therefore and CAN crystal oscillator.

Original Junior

EEPROM and Can oscillator

The group build five working Juniors.
